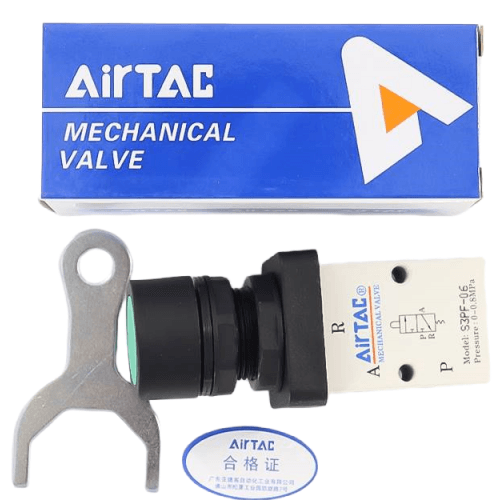

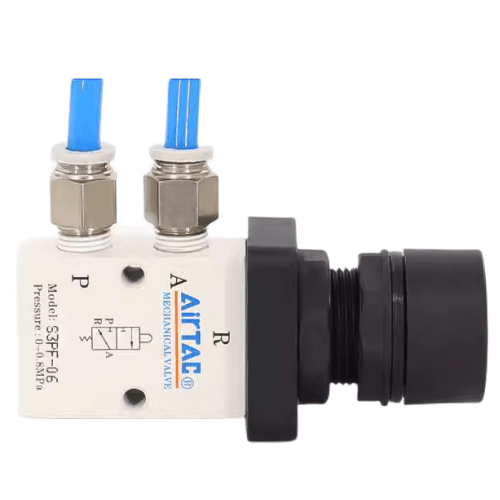

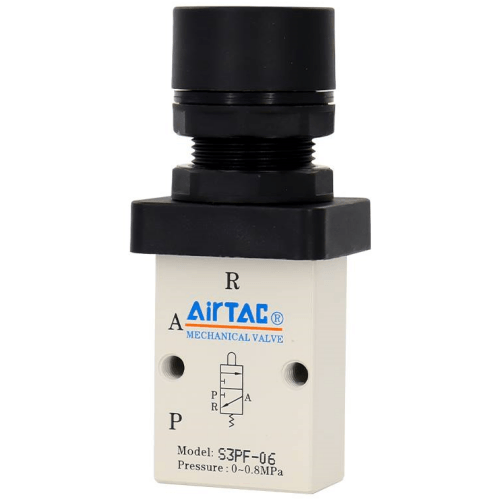

Airtac S3PF Flat Button Type Mechanical Valve S3PF06GG
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
AirTAC S3PF06GG Flat Head Push Button Mechanical Valve Specifications
- Model: S3PF06GG
- Type: 3/2-way normally closed (manual reset)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.7 MPa
- Operating force: ≤30N
- Actuation type: Mechanical push button with lockable position
- Valve body material: Brass with nickel plating
- Seal material: NBR (nitrile rubber)
- Temperature range: -5℃ to 60℃
- Weight: 180g ±5g
- Dimensions: 50mm(L) × 30mm(W) × 25mm(H)
- Port thread depth: 10mm
- Cycle life: ≥500,000 operations
- Protection rating: IP54 (dust and splash resistant)
Industrial-grade manual override valve featuring ergonomic flat head design for positive tactile feedback. The chrome-plated steel button with anti-slip grooves ensures reliable operation even with gloves. Built-in mechanical lock maintains position without continuous pressure. Corrosion-resistant construction suitable for harsh environments.
- Emergency stop systems in production lines
- Manual override for automated pneumatic circuits
- Maintenance bypass control in hydraulic systems
- Safety interlocks in press machinery
- Training simulators for industrial equipment
Installation note:
Ensure minimum 15mm clearance around button for full stroke operation.
Apply thread sealant (PTFE tape recommended) on port connections.
Test lock mechanism monthly with 5N rotational torque check.
| Property | Property Value |
|---|---|
| sku | S3PF06GG |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
