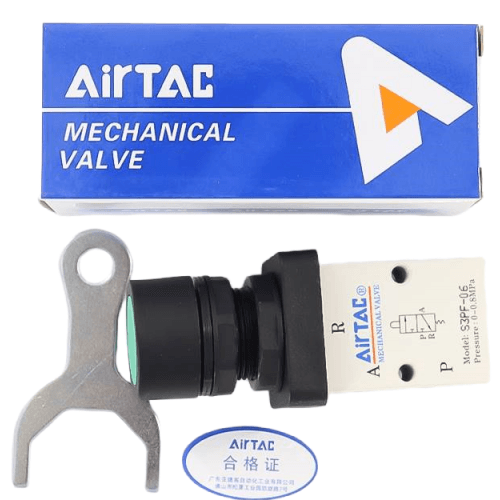

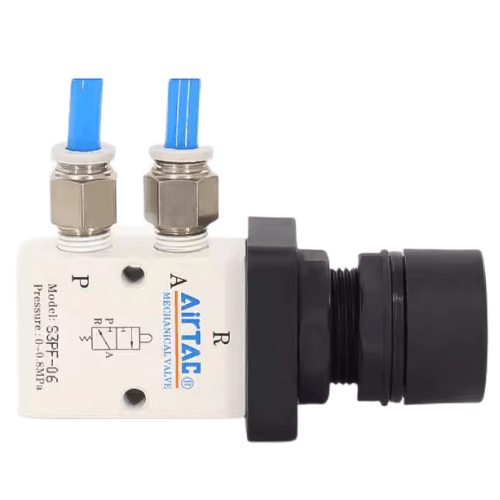

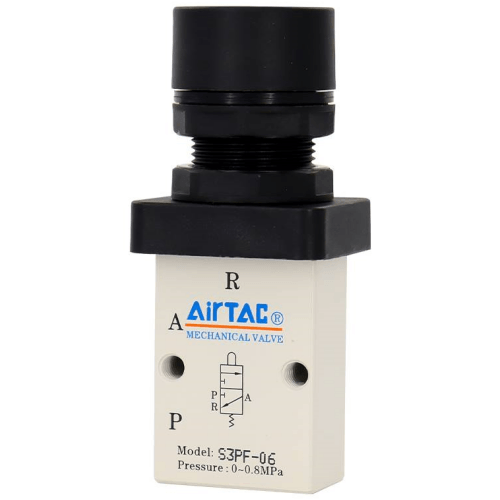

Airtac S3PF Flat Button Type Mechanical Valve S3PFM5G
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multi-configuration control heads for diverse operating conditions;
3. Poppet valve design ensures superior sealing performance, smooth shifting action, and maintenance-free operation without lubrication;
4. Supports multi-position mounting configurations for flexible installation;
5. Metal-constructed control heads on S3C, S3D, S3Y, S3R, and S3L series deliver extended service life with enhanced reliability and stability.
Category: Mechanical Valves | Brand: AIRTAC | Series: S3PF Flat-Head Button Type
AirTAC S3PFM5G Flat-Head Push Button Mechanical Valve Specifications
- Model: S3PFM5G
- Type: 3/2-way normally closed (manual reset)
- Operation style: Push-pull mechanical actuation
- Port size: M5 × 0.8 thread (ISO standard)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 250 NL/min (at 0.5 MPa)
- Actuation force: 3.5–4.5 N
- Body material: Nickel-plated brass
- Seal material: FKM fluorocarbon (Viton® equivalent)
- Temperature range: -10℃ to 80℃
- Weight: 85g ±2g
- Dimensions: 38mm(L) × 22mm(W) × 48mm(H)
- Port orientation: Axial flow design
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥500,000 operations
Compact manual override valve with tactile feedback, featuring a low-profile 3mm actuator travel distance for space-constrained installations. The chrome-plated steel button resists corrosion from hand contact, while the double-seal structure prevents internal leakage. Compatible with ISO 15407-1 standard pneumatic systems.
- Emergency stop override in automated assembly lines
- Manual control of clamping fixtures in CNC machinery
- Safety interlock bypass in packaging equipment
- Pneumatic system debugging/maintenance operations
- Access control systems for cleanroom environments
Installation note: Requires 6mm hex key for mounting. Apply thread sealant only on male ports,
avoid overtightening (max 1.2 N·m torque). For vertical mounting, orient button facing downward
to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | S3PFM5G |
| Position | 3-Port 2-Position |
| Port Size | M5 |
