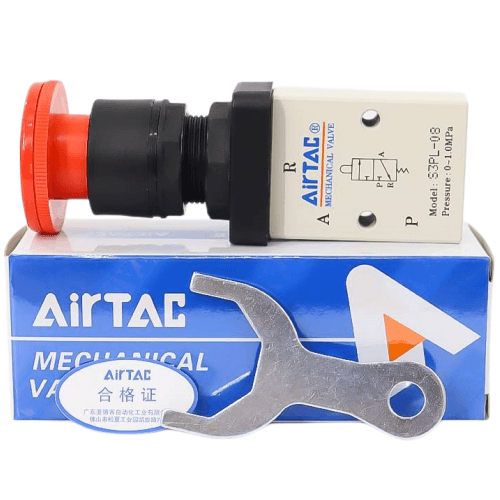

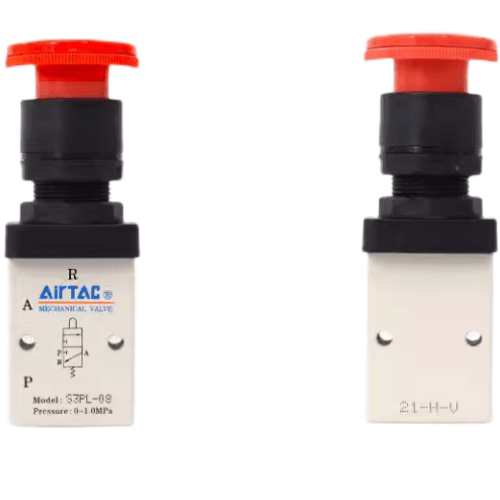

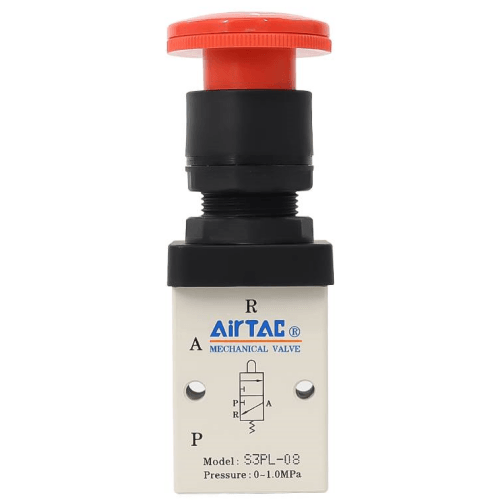

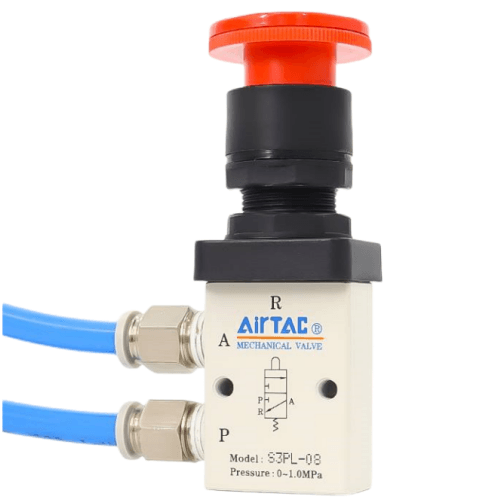

Airtac S3PL Parking Rotary Button Type Mechanical Valve S3PL-06
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multiple actuator head configurations for versatile installation under diverse conditions;
3. Poppet valve design ensures excellent sealing performance, responsive directional switching, and maintenance-free lubrication;
4. Flexible multi-position mounting capability with simplified installation procedures;
5. Metallic actuator heads on S3C, S3D, S3Y, S3R, and S3L series deliver enhanced durability and operational stability.
Category: Mechanical Valves , Brand: AirTAC , Series: S3PL Stationary Rotary Pushbutton Mechanical Valve
AirTAC S3PL-06 Docking Rotary Button Mechanical Valve Specifications
- Model: S3PL-06
- Type: 3-position (5-port) detented rotary manual valve
- Port configuration: P, A, B, R1, R2
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Max flow rate: 750 L/min (Cv=1.2)
- Operating temperature: -10℃ to 60℃ (14℉ to 140℉)
- Body material: Anodized aluminum alloy
- Seal material: Heat-resistant NBR
- Actuation torque: ≤1.5 N·m
- Weight: 220g ±5%
- Dimensions: 58mm(L) × 42mm(W) × 34mm(H) (2.28" × 1.65" × 1.34")
- Mounting: Panel mount with M5 threaded holes
- Position indication: Tactile click stops with position markers
- IP rating: IP67 (dust/water resistant)
Manual override valve with positive-position locking mechanism, featuring stainless steel shaft and precision ball detent system for reliable position maintenance. The ergonomic knurled knob allows gloved operation, while the dual exhaust ports enable efficient air release. Includes built-in mounting flanges for stable panel installation.
- Emergency stop override in automated production lines
- Manual mode selection in packaging machinery
- Position locking in material handling systems
- Safety bypass control in semiconductor equipment
- Pneumatic circuit testing/maintenance operations
Operation note:
Rotate knob 90° between positions with positive "click" feedback.
Apply silicone-free grease (ISO VG32) quarterly for harsh environments.
Ensure exhaust ports remain unobstructed during installation.
- Mounting bracket kit S3PL-MB2
- Extended handle S3PL-EH06 (50mm length)
- Position indicator caps (red/yellow/green)
| Property | Property Value |
|---|---|
| sku | S3PL-06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
