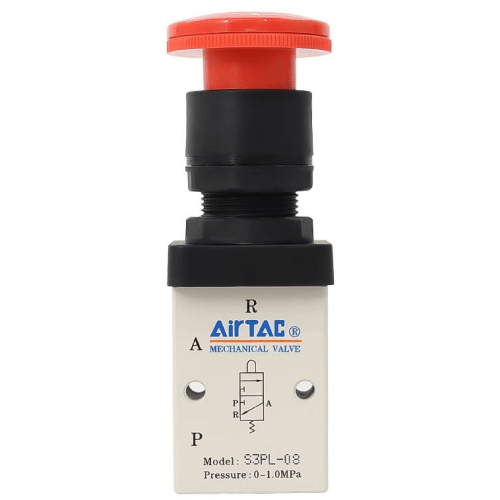

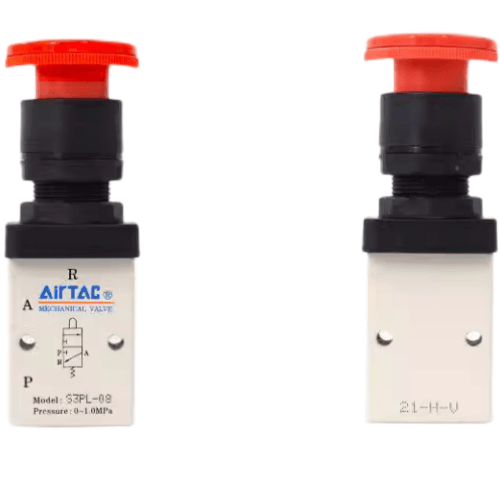

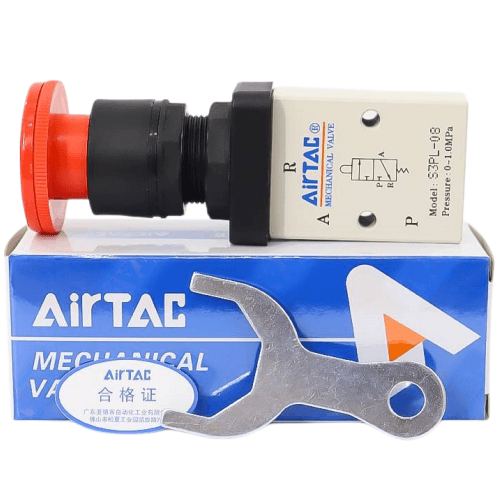

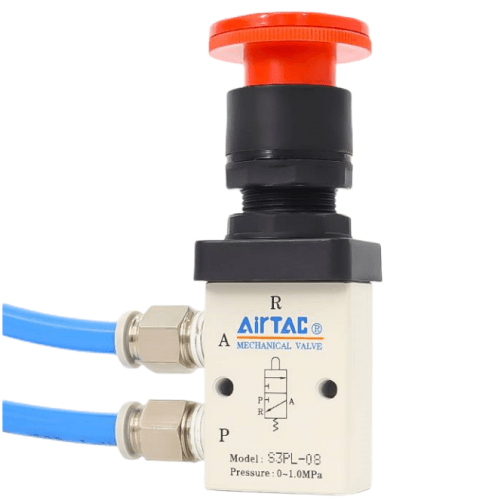

Airtac S3PL Parking Rotary Button Type Mechanical Valve S3PL-08
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multiple actuator head configurations for versatile installation under diverse conditions;
3. Poppet valve design ensures excellent sealing performance, responsive directional switching, and maintenance-free lubrication;
4. Flexible multi-position mounting capability with simplified installation procedures;
5. Metallic actuator heads on S3C, S3D, S3Y, S3R, and S3L series deliver enhanced durability and operational stability.
Category: Mechanical Valves , Brand: AirTAC , Series: S3PL Stationary Rotary Pushbutton Mechanical Valve
AirTAC S3PL-08 Latching Rotary Button Mechanical Valve Specifications
- Model: S3PL-08
- Type: 3-position latching (push-pull-rotate) manual mechanical valve
- Port configuration: 5 ports (P, A, B, R1, R2)
- Port size: G1/8 (BSPP thread)
- Operating pressure: 0.2–0.8 MPa
- Max flow rate: 500 NL/min (ANR)
- Actuation force: ≤15N rotary torque
- Body material: Anodized aluminum alloy + PBT engineering plastic
- Seal material: Heat-resistant NBR (-20℃ to 80℃)
- Operating temperature: -20℃ to 80℃ (no ice formation)
- Weight: 215g ±5g
- Dimensions: 54mm(W) × 48mm(H) × 34mm(D)
- Mounting: Panel mount with M5 threaded collar
- IP rating: IP65 (dustproof & water jet resistant)
- Mechanical life: ≥500,000 cycles
- Compliance: RoHS 2.0 compliant
Industrial-grade manual override valve featuring a unique triple-action mechanism: push to engage, rotate to lock, pull to release. The chrome-plated brass stem and precision ball detent mechanism ensure positive position feedback. Designed for emergency stop systems and manual override stations requiring tactile confirmation of valve state.
- Production line emergency stop stations
- Injection molding machine manual mode override
- Pneumatic press safety interlocks
- Railway maintenance equipment control panels
- Food processing manual purge systems
Installation note:
Requires 22mm panel cutout. Apply thread sealant on port connections.
For vertical mounting only - maximum 5° deviation allowed. Perform
monthly rotary mechanism lubrication with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | S3PL-08 |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
