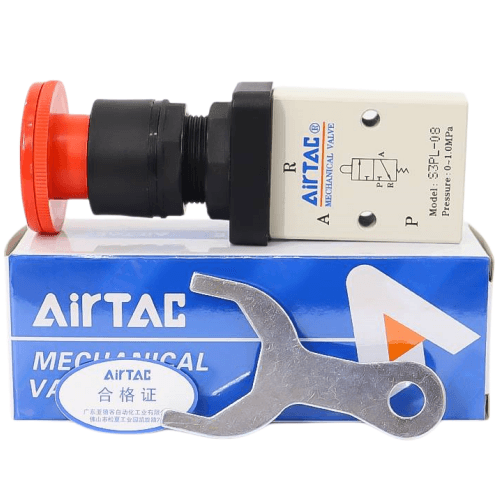

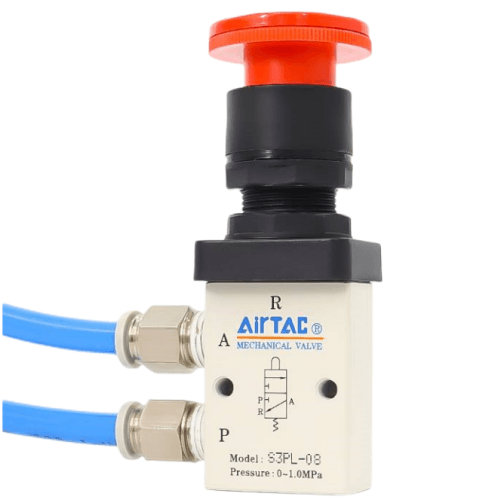

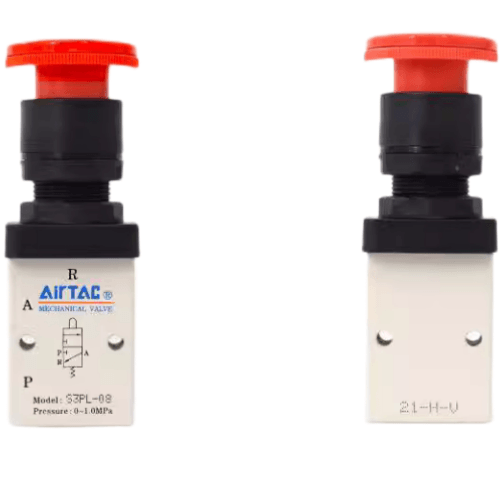

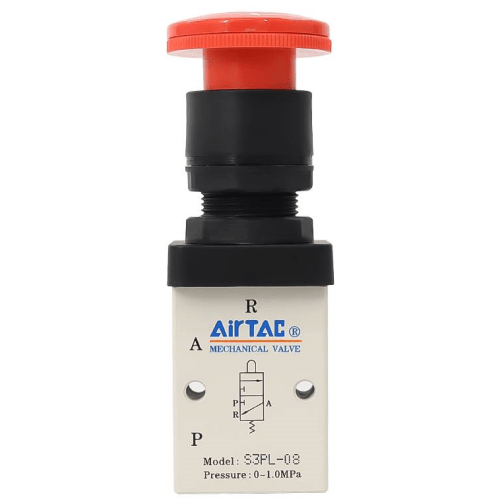

Airtac S3PL Parking Rotary Button Type Mechanical Valve S3PL06G
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with multiple actuator head configurations for versatile installation under diverse conditions;
3. Poppet valve design ensures excellent sealing performance, responsive directional switching, and maintenance-free lubrication;
4. Flexible multi-position mounting capability with simplified installation procedures;
5. Metallic actuator heads on S3C, S3D, S3Y, S3R, and S3L series deliver enhanced durability and operational stability.
Category: Mechanical Valves , Brand: AirTAC , Series: S3PL Stationary Rotary Pushbutton Mechanical Valve
AirTAC S3PL06G Parking Rotary Button Mechanical Valve Specifications
- Model: S3PL06G
- Type: 3-position (Parking) / 5-port rotary button mechanical valve
- Port size: 1/4" NPT (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Operating temperature: -10℃ to 70℃ (14°F to 158°F)
- Rotation torque: ≤1.5 N·m
- Actuation type: Manual rotary knob with locking position
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile)
- Weight: 320g ±5g
- Dimensions: 68mm(L) × 42mm(W) × 82mm(H)
- Port configuration: P (pressure), A/B (actuator), R/S (exhaust)
- Flow capacity: 850 l/min (ANR)
- Protection rating: IP67 (dustproof & waterproof)
- Mounting style: Direct piping or sub-base mounting
Industrial-grade manual override valve with positive position locking mechanism, featuring tactile feedback during rotation. The chrome-plated brass rotary knob provides corrosion resistance in humid environments. Designed for mid-pressure pneumatic systems requiring precise manual control and position memory function. Includes dual exhaust mufflers for noise reduction below 75dB.
- Production line emergency stop systems
- Material handling equipment position lock
- Plastic injection molding machine safety override
- Food processing machinery manual control stations
- Automated warehouse conveyor diverters
Installation note:
Apply thread sealant (PTFE tape) on port connections. Ensure knob rotation arc (120°)
has clearance from adjacent components. Perform monthly lubrication of rotating shaft
with silicone-based grease (ISO VG 10).
| Property | Property Value |
|---|---|
| sku | S3PL06G |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
