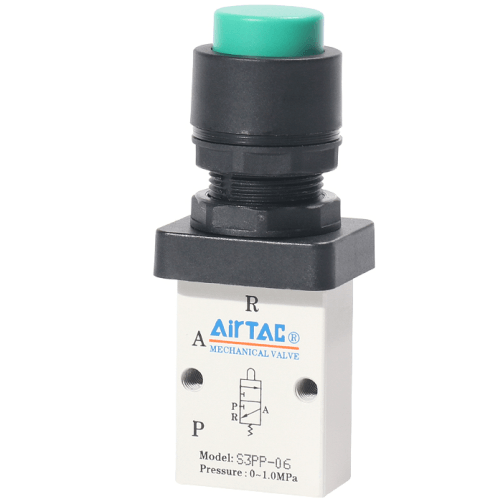

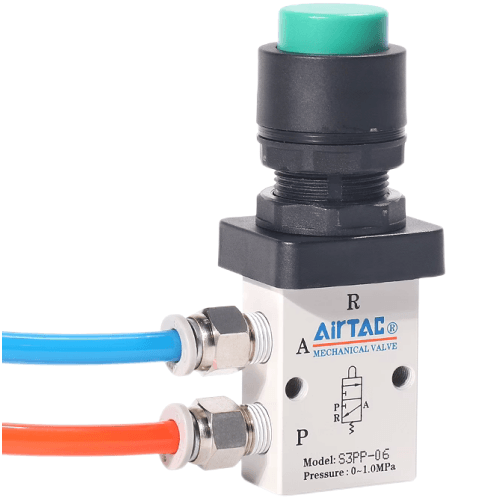

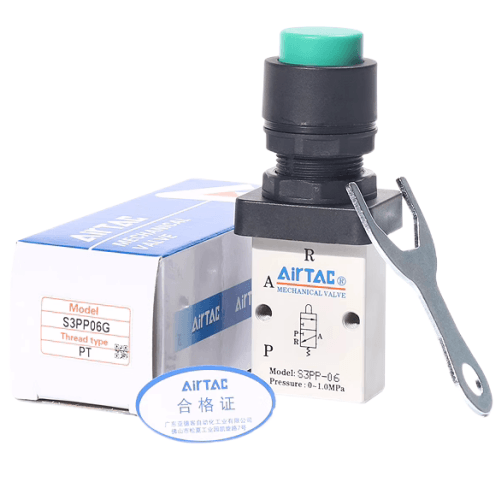

Airtac S3PP Convex Head Push-button Mechanical Valve S3PP-06-B
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
AirTAC S3PP-06-B Mushroom Head Push Button Mechanical Valve Specifications
- Model: S3PP-06-B
- Type: Normally closed mechanical valve (manual reset)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.8 MPa
- Button type: Mushroom head (red/yellow options)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Temperature range: -10℃ to 80℃
- Operating force: 25N±5N
- Life expectancy: ≥500,000 cycles
- Weight: 210g±5g
- Dimensions: 58mm(D) × 58mm(H) × 34mm(W)
- Mounting: M5 screw or panel mounting
- Protection rating: IP67 (dust/water resistant)
Emergency stop valve with positive-lock mechanism featuring a large 32mm diameter mushroom head for rapid manual operation. The zinc-plated steel spring and corrosion-resistant construction ensure reliable performance in harsh environments. Includes dual-color position indicator (red/yellow) for clear status recognition.
- Emergency stop systems in packaging machinery
- Safety interlocks for automated production lines
- Manual override in pneumatic control panels
- Process interruption in chemical handling equipment
- Educational lab equipment safety controls
Installation note:
Requires 50mm clearance around button for emergency access.
Use thread sealant on ports for gas applications.
Test lock mechanism monthly in high-cycle environments.
- Press button vertically with palm (45N max force)
- Rotate 15° clockwise to lock in closed position
- Pull upward while rotating counter-clockwise to reset
| Property | Property Value |
|---|---|
| sku | S3PP-06-B |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
