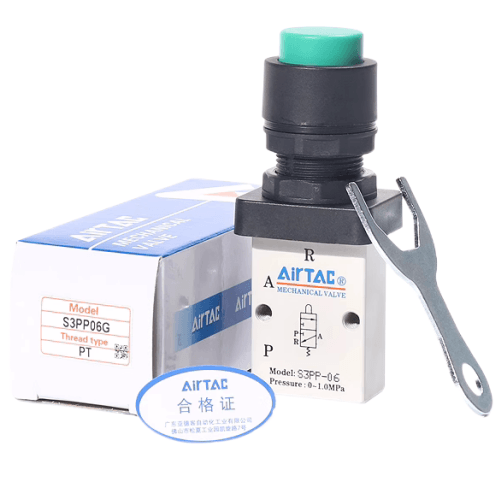

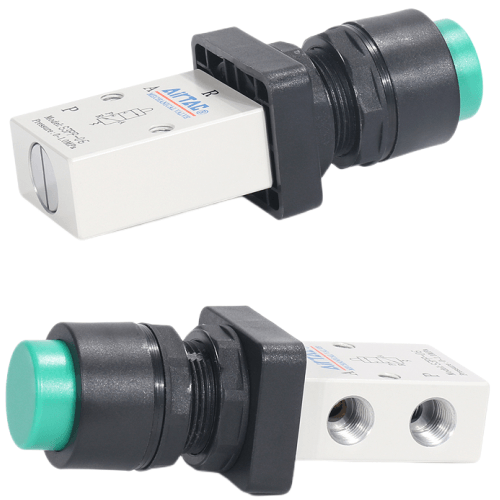

Airtac S3PP Convex Head Push-button Mechanical Valve S3PP-M5-B
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
AirTAC S3PP-M5-B Convex Head Push Button Mechanical Valve Specifications
- Model: S3PP-M5-B
- Type: Normally closed 3/2-way manual mechanical valve
- Port size: M5×0.8 (ISO 228 standard)
- Operating pressure: 0.1–0.7 MPa (14.5–101.5 PSI)
- Flow capacity: 100 L/min (at 0.5 MPa)
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile) with anti-aging additives
- Operating temperature: -5℃ to 60℃ (23℉ to 140℉)
- Actuation force: 3.5–4.5 N (manual push)
- Weight: 85g ±2g (including fittings)
- Dimensions: 25mm(W) × 25mm(D) × 38mm(H)
- Mounting: Direct panel mounting with M5 locknut
- Protection rating: IP40 (dust protected)
- Cycle life: ≥500,000 operations
Compact manual reset valve featuring a tactile convex button with 2mm travel distance. The chrome-plated steel spring ensures consistent return force across temperature variations. Includes integrated silencer (35 dBA noise reduction) and anti-rotation hex base for secure wiring. Compatible with ISO 8573-1:2010 Class 4 compressed air.
- Emergency stop systems in packaging machinery
- Manual override in automated assembly lines
- Pneumatic fixture controls for CNC workholding
- Educational training equipment for mechatronics
- Service/maintenance air circuit isolation
Installation note:
Apply 2.5–3.5 N·m torque during mounting. For vertical panel installations,
orient the exhaust port downward to prevent debris accumulation.
Lubricate quarterly with ISO VG32 hydraulic oil if used in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | S3PP-M5-B |
| Position | 3-Port 2-Position |
| Port Size | M5 |
