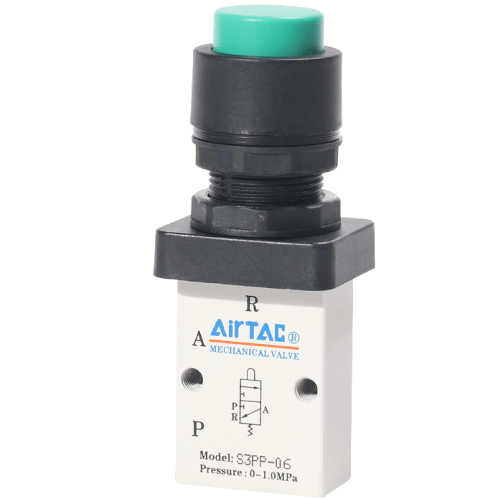

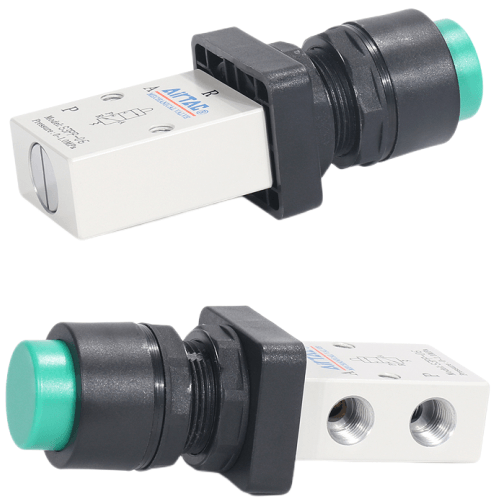

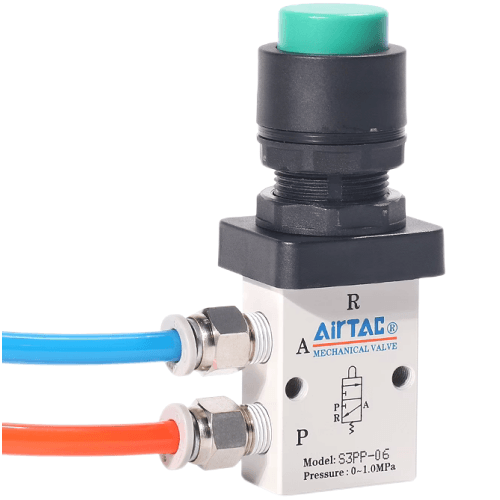

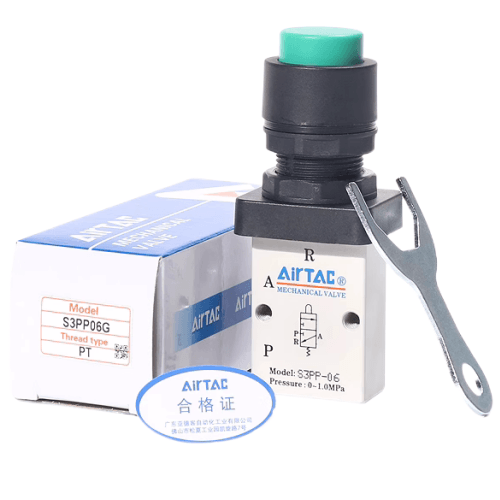

Airtac S3PP Convex Head Push-button Mechanical Valve S3PP05-P11A
$5.80
Regular price
$13.30
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
S3PP05-P11A
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. The S3B, S3R, S3L, and S3V series utilize externally provided actuation forces for directional switching, making them suitable for position sensing or as limit switches in automated systems.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
Installation note:
Apply thread sealant to port connections (PTFE tape not recommended).
Ensure button travel path remains unobstructed - minimum 15mm front clearance required.
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
AirTAC S3PP05-P11A Push Button Mechanical Valve Specifications
- Model: S3PP05-P11A
- Type: 3/2-way normally closed (manual push button operation)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.8 MPa
- Operating force: 20N ± 5N
- Body material: Aluminum alloy (anodized surface)
- Seal material: HNBR rubber (oil & heat resistant)
- Temperature range: -10℃ to 80℃
- Flow capacity: 450 NL/min (at 0.5 MPa)
- Mounting type: Panel mount (10mm thickness max)
- Protection rating: IP67 (dust/water resistant)
- Weight: 85g ± 3g
- Dimensions: 32mm(L) × 28mm(W) × 46mm(H)
Manual override valve with tactile feedback, featuring anti-vibration lock mechanism and ergonomic button design. The chrome-plated brass stem ensures smooth operation through 500,000+ cycles. Requires 5-40℃ compressed air with max 5mg/m³ oil content.
Typical Applications:
- Emergency stop systems in packaging machinery
- Manual control stations for assembly line maintenance
- Pneumatic fixture override controls
- Educational training equipment for fluid power
- Mobile hydraulic platform safety releases
Installation note:
Apply thread sealant to port connections (PTFE tape not recommended).
Ensure button travel path remains unobstructed - minimum 15mm front clearance required.
| Property | Property Value |
|---|---|
| sku | S3PP05-P11A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
