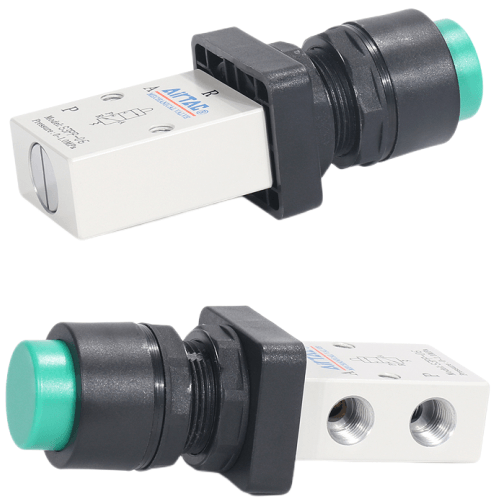

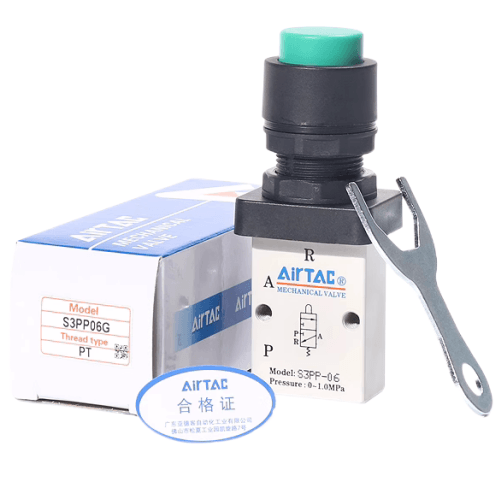

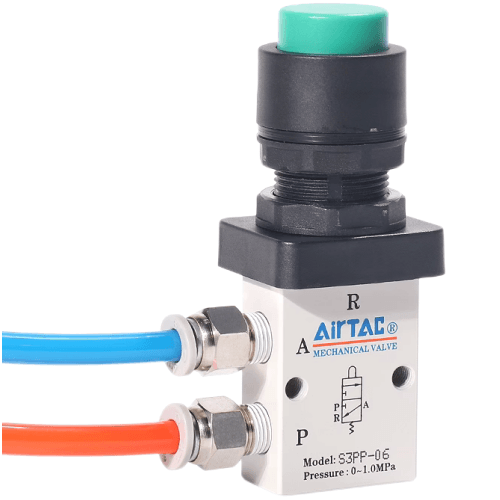

Airtac S3PP Convex Head Push-button Mechanical Valve S3PP05-P12A
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
AirTAC S3PP Convex Head Push Button Mechanical Valve S3PP05-P12A Specifications
- Model: S3PP05-P12A
- Type: 3/2-way normally closed (mechanical actuation)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.8 MPa
- Flow capacity: 650 NL/min (ANR)
- Actuation force: ~3N push operation
- Body material: Stainless steel (SUS303)
- Seal material: Heat-resistant NBR rubber
- Temperature range: -20℃ to 80℃
- Mechanical life: ≥500,000 cycles
- Weight: 198g ±2g
- Dimensions: 50mm(L) × 25mm(W) × 40mm(H)
- Mounting type: Panel mounting (Ø12mm hole required)
- Protection rating: IP67 (dust/water resistant)
- Compliance: RoHS 2.0 compliant
Manual override valve with tactile convex button design for precise mechanical control. Features stainless steel corrosion-resistant construction and ergonomic 15° button tilt angle for operator comfort. Integrated dust boot prevents particulate ingress. Requires 5μm filtered compressed air (ISO 8573-1:2010 Class 3.4.2).
- Emergency stop systems in assembly lines
- Manual mode override in automated packaging machinery
- Process control in semiconductor manufacturing equipment
- Mobile hydraulic platform safety controls
- Pharmaceutical cleanroom device activation
Installation guidelines:
Ensure button axis alignment with operator's natural hand position (±5° tolerance).
Apply thread sealant to port connections (PTFE tape not recommended).
Perform monthly button stroke checks under load conditions.
| Property | Property Value |
|---|---|
| sku | S3PP05-P12A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
