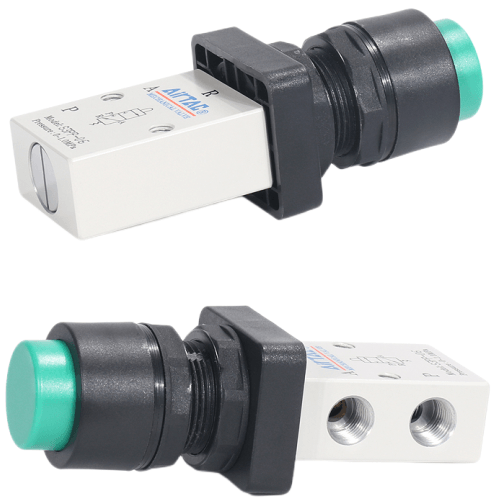

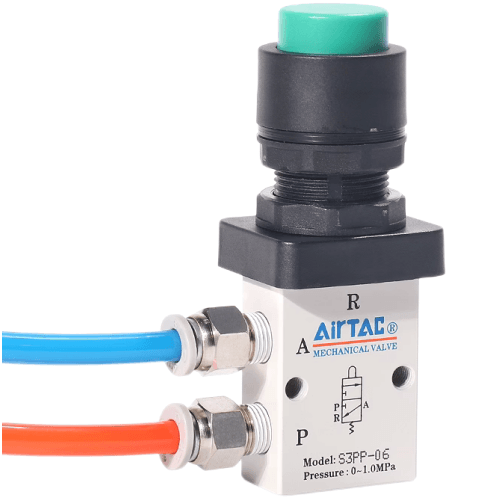

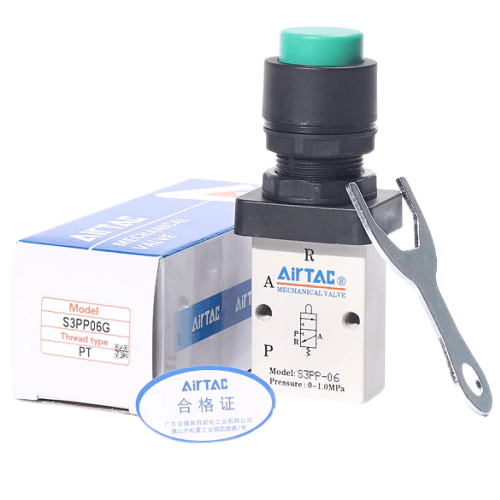

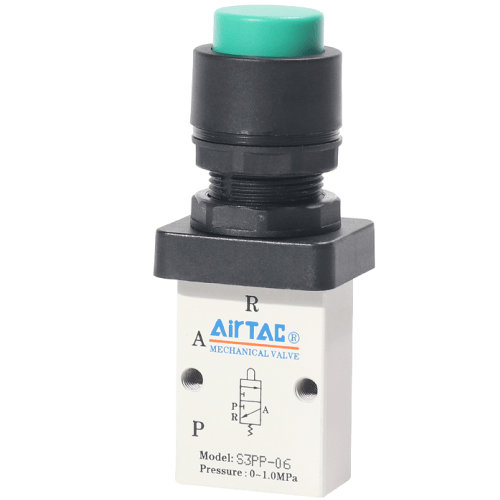

Airtac S3PP Convex Head Push-button Mechanical Valve S3PP05-P13A
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
AirTAC S3PP05-P13A Mushroom Head Push Button Mechanical Valve Specifications
- Model: S3PP05-P13A
- Type: Normally open mechanical valve with manual override
- Port size: PT1/8 (G1/8 equivalent)
- Operating pressure: 0.05–0.8 MPa
- Operating force: 5-10N (manual actuation)
- Flow capacity: 200 NL/min (at 0.5 MPa)
- Body material: Aluminum alloy (anodized finish)
- Seal material: NBR (nitrile rubber)
- Temperature range: -20℃ to 80℃
- Thread engagement depth: 8mm minimum
- Protection rating: IP67 (dust/water resistant)
- Weight: 120g ±5g
- Dimensions: 35mm(L) × 28mm(W) × 28mm(H)
- Mounting hole diameter: 12mm
- Actuator diameter: 22mm (mushroom head)
Emergency-stop style mechanical valve featuring positive tactile feedback and yellow safety collar. The zinc-plated steel spring ensures reliable resetting, while the large mushroom head allows quick palm activation. Designed for 500,000+ mechanical cycles with <2% leakage rate at max pressure.
- Safety interlocks in pneumatic press machines
- Emergency stop systems for conveyor lines
- Manual override in automated assembly stations
- Training equipment for industrial safety courses
- Mobile hydraulic/pneumatic test benches
Installation notes:
- Ensure 360° accessibility for emergency operation
- Use thread sealant on male ports (PTFE tape not recommended)
- Monthly function test required for safety-critical applications
| Property | Property Value |
|---|---|
| sku | S3PP05-P13A |
| Position | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
| Port Size | Please provide the specific AirTAC product attribute values you need translated, and I will return the accurate English terminology. |
