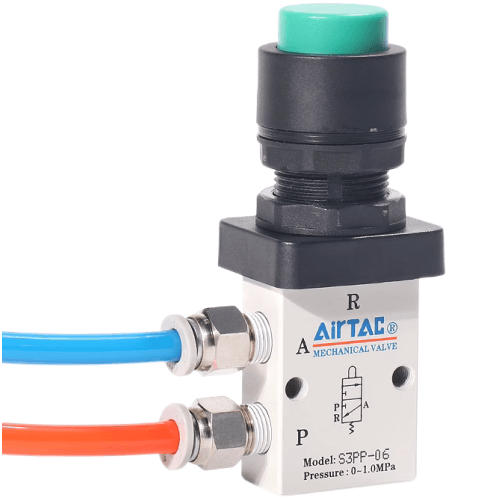

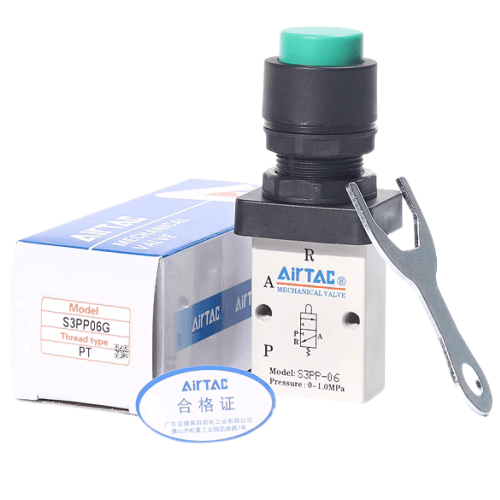

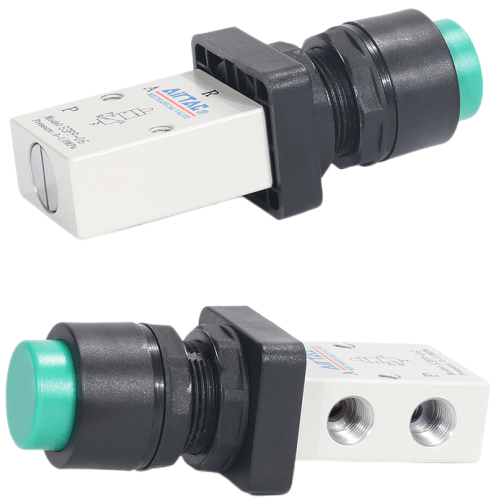

Airtac S3PP Convex Head Push-button Mechanical Valve S3PP08G
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
AirTAC S3PP08G Mushroom Head Push Button Mechanical Valve Specifications
- Model: S3PP08G
- Type: 3/2-way manual reset mechanical valve (push-pull operation)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.1–0.8 MPa
- Operating temperature: -20℃ to 70℃
- Actuation force: 3.5–4.5 kgf (manual push)
- Reset method: Manual pull rotation (45° twist release)
- Body material: Nickel-plated brass
- Seal material: NBR (Nitrile rubber)
- Contact rating: 1A at 24VDC (gold-plated contacts)
- Protection rating: IP67 (dust/water resistant)
- Weight: 185g ±5g
- Dimensions: 48mm(D) × 48mm(W) × 65mm(H)
- Mounting: Panel mounting with M20×1.5 locknut
- Accessory: Includes 2m PVC-sheathed cable with pre-crimped terminals
Emergency-stop style mechanical valve with positive-lock mechanism, featuring a bright red anodized aluminum button (35mm diameter) with yellow base for high visibility. The dual-stage operation requires intentional rotation for reset, preventing accidental reactivation. Internal O-ring design ensures leak-free performance even in high-vibration environments.
- Emergency stop systems for CNC machinery
- Safety interlocks in automated production lines
- Mobile equipment emergency cutoff (cranes/AGVs)
- Process control manual override stations
- Test bench pneumatic circuit isolation
Installation guidelines:
Mount with button center 800-1200mm from floor level for ergonomic access.
Use thread sealant on port connections. Perform monthly function tests by
fully depressing button until tactile "click" is felt (3-5mm travel).
| Property | Property Value |
|---|---|
| sku | S3PP08G |
| Position | 3-Port 2-Position |
| Port Size | PT1/4 |
