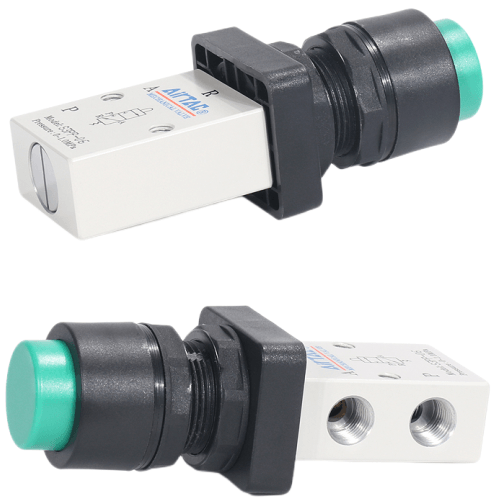

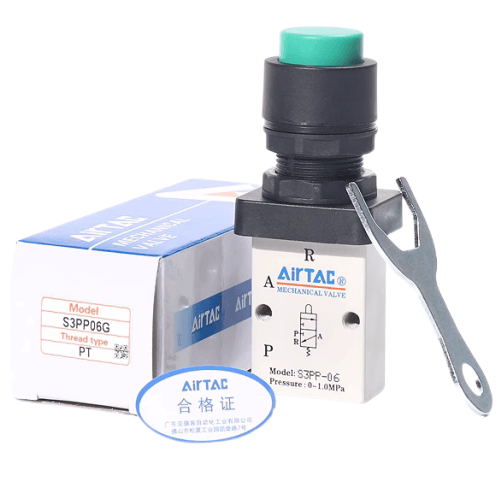

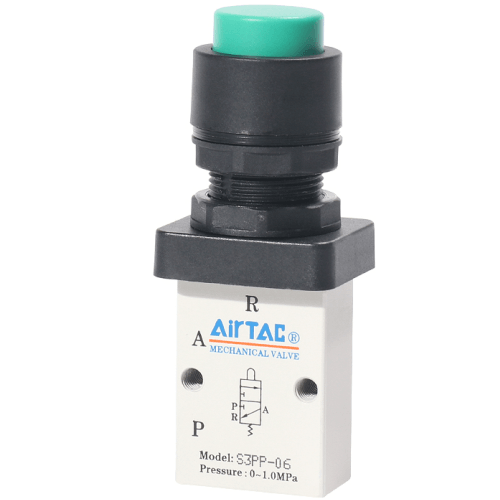

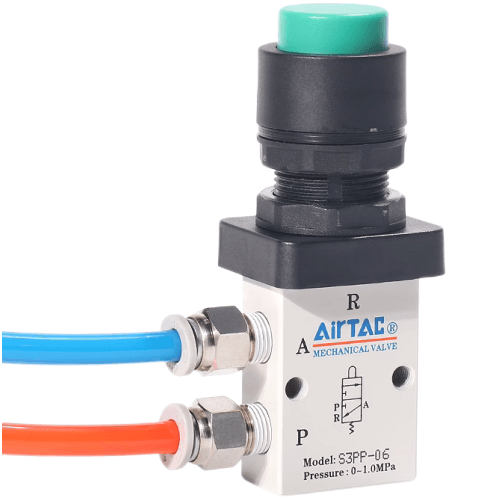

Airtac S3PP Convex Head Push-button Mechanical Valve S3PPM5G
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
AirTAC S3PP Series Mushroom Head Mechanical Valve S3PPM5G Specifications
- Model: S3PPM5G
- Type: Push-button operated mechanical valve (3-position, closed center)
- Port size: M5×0.8 threaded connection
- Operating pressure: 0.05–0.7 MPa
- Max flow rate: 300 NL/min (at 0.5 MPa)
- Actuation force: 25N±5N (manual operation)
- Weight: 112g ±3g
- Dimensions: 38mm(L) × 38mm(W) × 54mm(H) (excluding button protrusion)
- Button diameter: 25mm (mushroom head)
- Seal material: Fluororubber (FKM) standard (NBR optional)
- Temperature range: -10℃ to 80℃ (with FKM seals)
- Protection rating: IP67 (dust/water resistant)
- Mounting style: Panel mount with M20×1.5 locknut
- Mechanical life: ≥500,000 cycles
Emergency-stop style mechanical valve featuring a highly visible yellow mushroom head with positive latching mechanism. Engineered for safety-critical applications requiring immediate airflow cutoff. The zinc alloy body with chrome-plated brass core ensures corrosion resistance in humid environments. Includes dual-color position indicator (green/red) for visual status confirmation.
- Emergency stop circuits in pneumatic systems
- Safety interlocks for press machinery
- Manual override stations in automated production lines
- Mobile equipment emergency shutdown systems
- Laboratory gas supply control panels
Installation note:
Requires 50mm minimum clearance above button for emergency access.
Use thread sealant on M20 locknut (not included). Test latch release
mechanism monthly using integrated test port (2mm hex key required).
| Property | Property Value |
|---|---|
| sku | S3PPM5G |
| Position | 3-Port 2-Position |
| Port Size | M5 |
