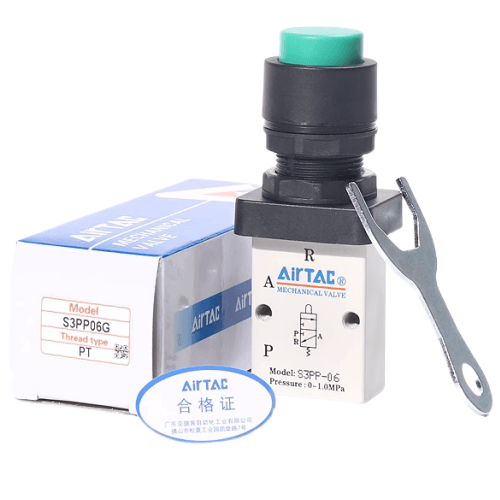

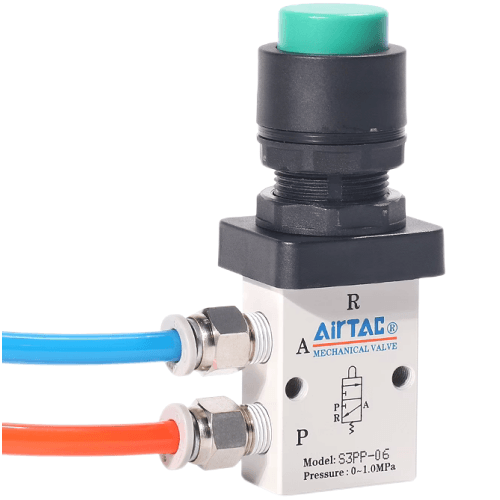

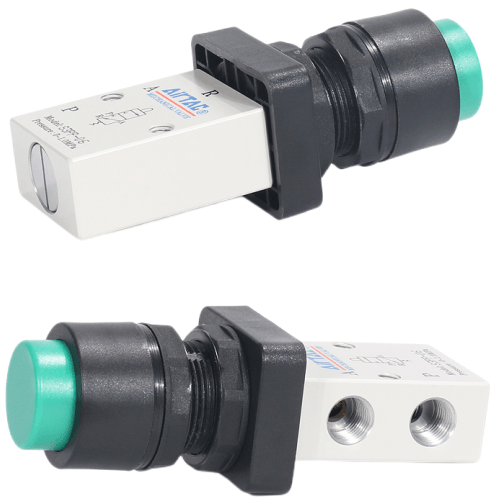

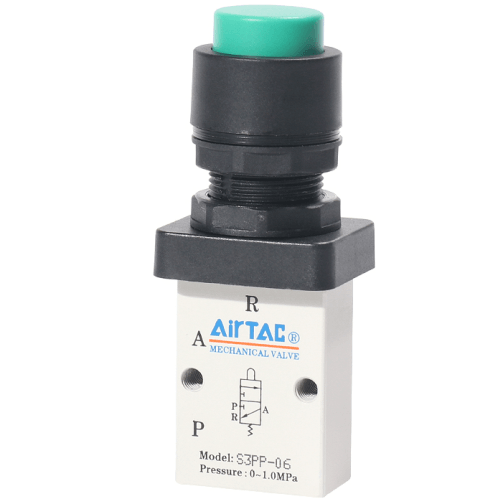

Airtac S3PP Convex Head Push-button Mechanical Valve S3PPM5R
2. The S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual operation with diversified actuator head configurations to accommodate varied application requirements.
3. Equipped with a poppet valve structure for excellent sealing performance, these valves ensure smooth directional switching without requiring lubrication.
4. Supports multi-position mounting orientations for simplified integration and operational flexibility.
5. Robust metal actuator heads in S3C, S3D, S3Y, S3R, and S3L series enhance longevity and deliver reliable, stable performance in demanding environments.
Category: Mechanical Valves | Brand: Airtac | Series: S3PP
AirTAC S3PP Mushroom Head Push Button Mechanical Valve S3PPM5R Specifications
- Model: S3PPM5R
- Type: Manual reset mechanical valve with mushroom head
- Operation type: Push-button actuation (spring return)
- Port size: M5 (metric thread)
- Port configuration: 3/2-way (normally closed)
- Operating pressure: 0.05–0.7 MPa
- Proof pressure: 1.05 MPa
- Flow rate: 200 NL/min (at 0.5 MPa)
- Actuation force: 30-50N (ergonomic design)
- Body material: Anodized aluminum alloy (black finish)
- Seal material: Heat-resistant NBR (Nitrile rubber)
- Temperature range: -10℃ to 60℃
- Weight: 120g ±5%
- Dimensions: 25mm(L) × 25mm(W) × 42mm(H) (excluding button protrusion)
- Button diameter: 28mm (standard safety mushroom head)
- Mounting: Panel mounting (requires 22mm cutout)
- Protection rating: IP65 (dust-tight & water jet resistant)
- Mechanical life: ≥500,000 cycles
Emergency-stop grade mechanical valve featuring a highly visible yellow-black safety button with positive tactile feedback. The dual-color button provides immediate visual status indication (yellow=actuated, black=normal). Engineered with anti-vibration locknuts and stainless steel spring for reliable operation in high-shock environments. Meets ISO 13850 safety standards for emergency stop devices.
- Emergency stop circuits in CNC machinery
- Safety interlocks on automated production lines
- Pneumatic press brake safety systems
- Material handling equipment emergency stops
- Packaging machine safety gates
- Robotic work cell access panels
Installation guidelines:
Mount with supplied anti-rotation washer to prevent unintended loosening.
Maintain minimum 15mm clearance around button for full actuation travel.
Test monthly by fully depressing button until "click" is felt (3-5mm travel).
| Property | Property Value |
|---|---|
| sku | S3PPM5R |
| Position | 3-Port 2-Position |
| Port Size | M5 |
