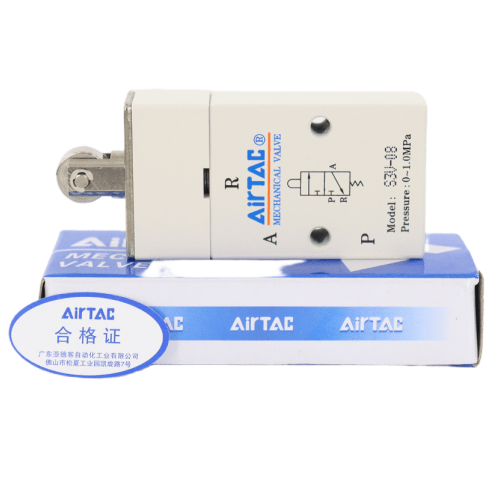

Airtac S3V Vertical Roller Lever Mechanical Valve S3VM5
1. The S3B, S3R, S3L, and S3V series require externally provided actuation force for directional switching, suitable for position sensing or limit switch applications;
2. S3PF, S3PM, S3PP, S3PL, S3Y, S3HS, S3C, and S3D series feature manual actuation with ergonomic actuator configurations, optimized for diverse application scenarios;
3. Poppet-style design ensures superior sealing performance, positive spool switching, and maintenance-free operation (no lubrication required);
4. Multi-position mounting options with simplified installation procedures;
5. S3C, S3D, S3Y, S3R, and S3L series incorporate durable metal actuators for enhanced longevity and operational stability.
Category: Mechanical Valves | Brand: AirTAC | Series: S3V
AirTAC S3VM5 Vertical Roller Type Mechanical Valve Specifications
- Model: S3VM5
- Type: 3/2-way roller-actuated mechanical valve (normally closed)
- Port size: PT1/8 (G1/8 thread standard)
- Operating pressure: 0.05–0.7 MPa
- Actuation force: 3.5N±0.5N at roller tip
- Body material: Die-cast aluminum alloy (anodized finish)
- Seal material: Heat-resistant NBR
- Temperature range: -5℃ to 80℃ (with intermittent peaks to 120℃)
- Weight: 220g ±5g
- Dimensions: 54mm(L) × 36mm(W) × 68mm(H)
- Actuator stroke: 3mm with ±0.3mm tolerance
- Response time: ≤50ms (full stroke actuation)
- Protection rating: IP67 (dust/water resistant)
- Lubrication: Pre-lubricated (maintenance-free design)
Robust mechanical valve featuring vertical roller actuation for precise position sensing in harsh environments. The hardened stainless steel roller rotates during actuation, reducing wear and ensuring smooth operation. Optimized flow path design achieves 850L/min (ANR) flow capacity. Includes built-in shock absorption for high-cycle applications.
- Pneumatic cylinder position feedback systems
- Conveyor belt jam detection mechanisms
- Automated door safety interlocks
- Textile machinery thread tension control
- Robotic arm end effector position confirmation
Installation guidance:
Mount with roller axis perpendicular to actuator motion direction.
Maintain 0.5-1mm clearance between roller and actuator surface.
For horizontal mounting, use optional drip-proof cover (accessory code: S3VM5-CAP).
| Property | Property Value |
|---|---|
| sku | S3VM5 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
