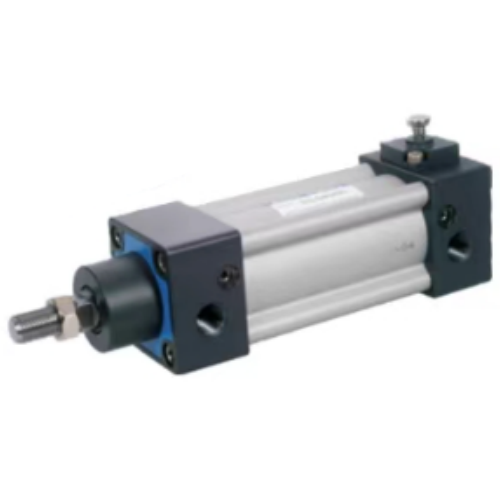

Airtac SILB Rear Locking Cylinder SILB125X130-S
2. Release mechanisms: automatic disengagement and manual release.
Category: Locking Cylinders | Brand: AirTAC | Series: SILB
AirTAC SILB125X130-S Locking Cylinder Specifications
- Model: SILB125X130-S
- Type: Double-acting cylinder with mechanical lock
- Bore size: 125mm
- Stroke: 130mm
- Operating pressure: 0.05–0.8 MPa
- Locking method: Dual-side wedge mechanism (auto-lock at stroke ends)
- Operation direction: Double-acting
- Cushion type: Adjustable rubber buffer
- Mounting style: Standard MF1 flange mounting
- Port size: G1/2 (ISO228/1 standard)
- Temperature range: -20℃ to 80℃
- Seal material: NBR (nitrile butadiene rubber)
- Weight: 8.5kg (excluding accessories)
- Dimensions: 345mm(L) × 125mm(W) × 125mm(H) (extended length)
- Rod thread: M30×1.5 external thread
- Lock holding force: ≥800N (at 0.5MPa)
- Repeat positioning accuracy: ±0.5mm
Heavy-duty locking cylinder designed for vertical load applications requiring position retention during power loss. Features wear-resistant chromium-plated rod and precision machined aluminum alloy barrel. The dual wedge locking mechanism engages automatically at stroke ends, providing fail-safe load holding without continuous air supply.
- Vertical press brake tool positioning systems
- Automated warehouse lifting platforms
- Injection molding machine safety clamps
- Automotive assembly line jig fixtures
- Steel coil handling equipment
Installation note:
Requires minimum 0.3MPa air pressure for reliable lock release.
Lubricate with ISO VG32 hydraulic oil through built-in lubrication ports every 500km of travel.
Avoid side-load forces exceeding 10% of maximum thrust capacity.
| Property | Property Value |
|---|---|
| sku | SILB125X130-S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | PT 1/2 |
| Magnet | S-Magnetic |
| Bore Diameter | 125mm |
| Stroke | 130mm |
| Lock Position | Rear Cover with Lock Type |
