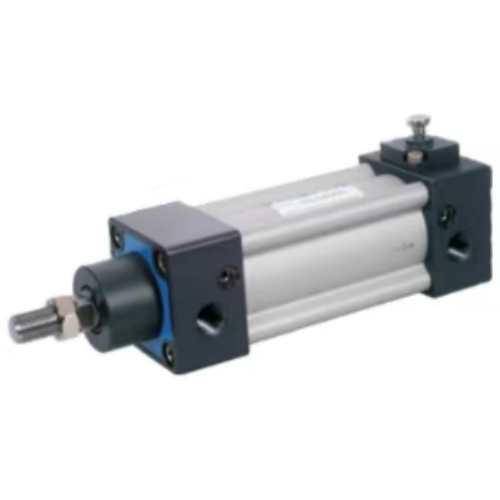

Airtac SILB Rear Locking Cylinder SILB200X125
2. Release mechanisms: automatic disengagement and manual release.
Category: Locking Cylinders | Brand: AirTAC | Series: SILB
AirTAC SILB200X125 Locking Cylinder Technical Details
- Model: SILB200X125
- Type: Double-acting cylinder with mechanical lock
- Bore size: Ø200mm (±0.1mm manufacturing tolerance)
- Stroke: 125mm (adjustable ±2mm)
- Operating pressure: 0.2–1.0 MPa (29–145 PSI)
- Cushioning: Adjustable pneumatic cushion at both ends
- Locking mechanism: Spring-assisted mechanical brake
- Temperature range: -20℃ to 80℃ (dry air required below 0℃)
- Material: Aluminum alloy barrel, CR12MoV piston rod
- Port size: G1/2 (BSPP thread)
- Mounting: Standard ISO 15552 foot and flange mounts
- Weight: 18.6kg (without accessories)
- Dimensions: 650mm(L) × 240mm(W) × 240mm(H)
- Rod thread: M30×2.0 external thread
- Seal type: HNBR seals (standard), FKM optional
- Position detection: Built-in magnet for sensor mounting
Heavy-duty locking cylinder combining precision positioning with fail-safe braking. Features dual anti-rotation guides (integrated into piston rod) and wear-resistant chromium plating (3-5μm thickness). Requires 40μm filtered lubricated air (ISO 8573-1 class 4). Lock engages automatically at power loss with ≤0.3s response time.
- Press machine safety interlocks
- Automated welding fixture position retention
- Vertical load holding in material handling systems
- Precision alignment in semiconductor wafer handling
- Emergency stop mechanisms for heavy actuators
Installation requirements:
Maximum side load ≤15% of thrust capacity. Lubricate with ISO VG32 turbine oil.
Perform lock calibration every 50,000 cycles. Avoid vertical downward mounting
without counterbalance valve.
| Property | Property Value |
|---|---|
| sku | SILB200X125 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | BSPT 3/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <200mm> |
| Stroke | 125mm |
| Lock Position | Rear Cover with Lock Type |
