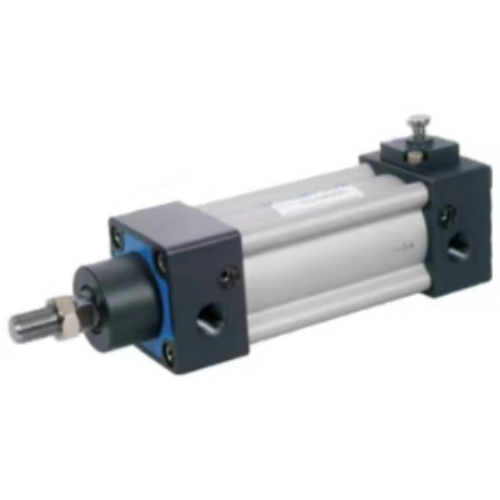

Airtac SILB Rear Locking Cylinder SILB200X150
2. Release mechanisms: automatic disengagement and manual release.
Category: Locking Cylinders | Brand: AirTAC | Series: SILB
AirTAC SILB200X150 Rear Lock Cylinder Specifications
- Model: SILB200X150
- Bore size: Ø200mm
- Stroke: 150mm
- Operating pressure: 0.1–1.0 MPa
- Locking method: Pneumatic-mechanical interlock
- Cushion type: Adjustable rubber buffer (both ends)
- Temperature range: -10℃ to 80℃
- Port size: G1/2 (NPT1/2 optional)
- Mounting type: Standard MF1 flange
- Rod material: Chrome-plated steel (Cr-Mo)
- Tube material: Anodized aluminum alloy
- Seal material: NBR + PU hybrid
- Weight: ~5.8kg (excluding accessories)
- Dimensions: 350mm(L) × 220mm(W) × 220mm(H)
- Lock holding force: ≥8000N (at 0.5MPa)
- Response time: ≤0.3s (locking/unlocking)
Heavy-duty locking cylinder with dual safety mechanism, combining pneumatic activation and mechanical self-locking. Features anti-vibration design with dual piston guides and wear-resistant rod seals. Requires 5-40μm filtered air with ISO VG32 hydraulic oil mist lubrication (0.1-0.3cc/min recommended).
- Press machine safety interlock systems
- Automotive welding fixture position retention
- Die-casting mold core pulling mechanisms
- Elevator emergency braking systems
- Rotary index table positioning locks
Installation note:
Must maintain horizontal orientation (±2° tolerance) for optimal locking performance.
Requires weekly lubrication via built-in grease nipple (Molykote EM-30L recommended).
Lock engagement requires minimum 0.3MPa air pressure.
| Property | Property Value |
|---|---|
| sku | SILB200X150 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | BSPT 3/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <200mm> |
| Stroke | 150mm |
| Lock Position | Rear Cover with Lock Type |
