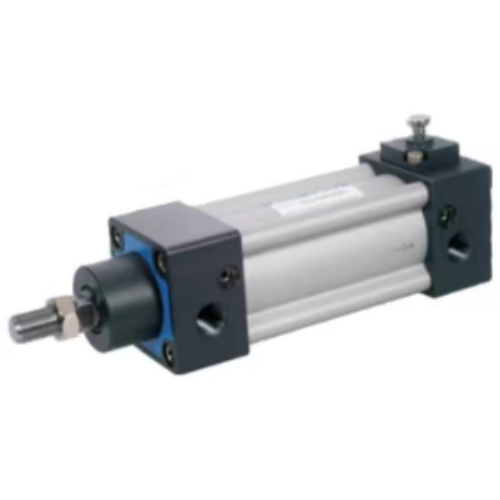

Airtac SILB Rear Locking Cylinder SILB200X160
2. Release mechanisms: automatic disengagement and manual release.
Category: Locking Cylinders | Brand: AirTAC | Series: SILB
AirTAC SILB200X160 Locking Cylinder Technical Details
- Model: SILB200X160
- Type: Double-acting cylinder with mechanical lock
- Bore size: Ø200mm
- Stroke: 160mm (customizable up to 500mm)
- Operating pressure: 0.05–1.0 MPa
- Cushioning: Adjustable pneumatic cushion (both ends)
- Locking force: 8,500N (max at 0.5MPa)
- Mounting type: Basic type (MF1) / Foot mounting optional
- Port size: G1/2 (NPT1/2 optional)
- Temperature range: -20℃ to 80℃
- Body material: Aluminum alloy (hard anodized)
- Rod material: Chrome-plated steel (S45C)
- Seal material: NBR/PU (optional FKM)
- Weight: 6.5kg (excluding accessories)
- Dimensions: 640mm(L) × 200mm(W) × 200mm(H)
Heavy-duty locking cylinder featuring dual-position mechanical brake system with spring-engaged failsafe mechanism. The integrated wedge-lock design maintains position during power failures with ±0.5mm repeatability. Requires 5-40μm filtered air and 1μm lubricator (ISO VG32 oil recommended).
- Press machine intermediate stop positioning
- Automated welding fixture clamping
- Elevator safety brakes in material handling systems
- Mold changing mechanisms in injection molding
- Overhead crane emergency stop systems
Installation protocol:
Locking mechanism requires manual release via emergency lever before initial operation.
Maintain 0.3-0.6MPa pilot pressure for optimal brake disengagement. Regular lubrication
intervals: 3 months (NBR seals) / 6 months (FKM seals).
| Property | Property Value |
|---|---|
| sku | SILB200X160 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | BSPT 3/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <200mm> |
| Stroke | 160mm |
| Lock Position | Rear Cover with Lock Type |
