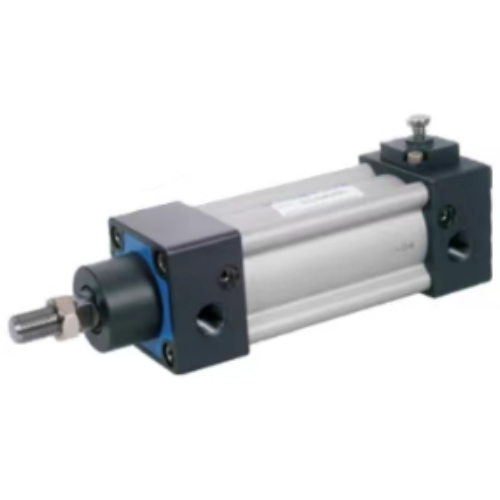

Airtac SILB Rear Locking Cylinder SILB200X175
2. Release mechanisms: automatic disengagement and manual release.
Category: Locking Cylinders | Brand: AirTAC | Series: SILB
AirTAC SILB200X175 Locking Cylinder Specifications
- Model: SILB200X175
- Type: Double-acting with integrated mechanical lock
- Bore diameter: 200 mm
- Stroke: 175 mm
- Operating pressure: 0.15–1.0 MPa
- Lock holding force: ≥1,200 N (at 0.5 MPa)
- Cushioning: Adjustable pneumatic cushion + elastic buffer
- Port size: G3/8 (NPT1/2 optional)
- Operating temperature: -20℃ to 80℃
- Piston speed: 50–800 mm/s
- Body material: Anodized aluminum alloy (A6063)
- Rod material: Chrome-plated steel (SUJ2)
- Seal material: NBR with wear-resistant ring
- Weight: 16.8 kg ±5%
- Dimensions: 572mm(L) × 200mm(W) × 200mm(H) (full extension)
- Mounting: ISO 15552 standard flange (MF12)
- Protection rating: IP54 (rod side)
High-load locking cylinder with dual safety mechanism combining spring brake and pneumatic lock. The triple-seal design ensures zero drift under 1.5× rated pressure. Features position detection grooves (M5 mounting) and anti-rotation guide for precision applications. Requires filtered air (40μm) with ISO VG32 lubricant.
- Vertical press brake tool locking systems
- Overhead crane safety brakes in manufacturing
- Automated warehouse vertical lift positioning
- Die casting machine core pull safety lock
- Robotic welding fixture stabilization
Operational guidance:
Engage manual override lever monthly to prevent seal adhesion.
Locking force adjusts via 2mm hex key (clockwise +5%/turn).
Maximum side load: 150N at rod end. Cycle rate ≤15 CPM for locked operations.
| Property | Property Value |
|---|---|
| sku | SILB200X175 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | BSPT 3/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <200mm> |
| Stroke | 175mm |
| Lock Position | Rear Cover with Lock Type |
