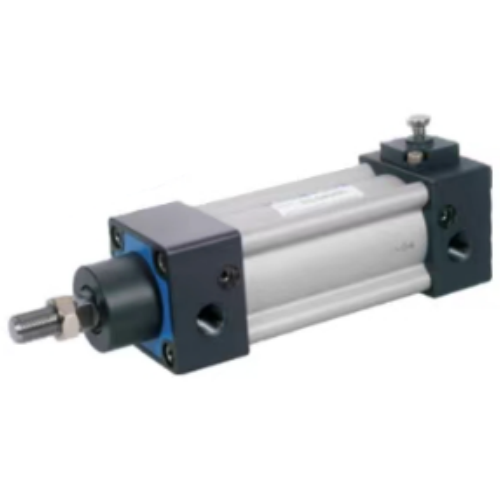

Airtac SILB Rear Locking Cylinder SILB200X25
2. Release mechanisms: automatic disengagement and manual release.
Category: Locking Cylinders | Brand: AirTAC | Series: SILB
AirTAC SILB200X25 Locking Cylinder Specifications
- Model: SILB200X25
- Type: Double-acting cylinder with mechanical lock
- Bore size: 200 mm
- Stroke: 25 mm
- Operating pressure: 0.05–1.0 MPa
- Locking force: ≥1,200 N (at 0.5 MPa)
- Piston speed: 50–800 mm/s
- Buffer type: Adjustable hydraulic cushion
- Locking method: Spring-assisted mechanical brake
- Operating temperature: -10℃ to 80℃
- Rod material: Hard chrome-plated steel
- Tube material: Aluminum alloy (anodized)
- Seal material: NBR + PU composite
- Weight: 3.8 kg (excluding accessories)
- Dimensions: 320mm(L) × 200mm(W) × 200mm(H)
- Mounting type: Standard ISO 15552 front flange
- Protection rating: IP67 (rod extended)
Heavy-duty locking cylinder designed for vertical load holding applications. Features dual-position mechanical locking through a spring-engaged wedge mechanism that activates automatically during pressure loss. The integrated hydraulic cushion minimizes end-impact, while the anti-rotation guide ensures precise linear motion. Requires minimal 5μm filtered air and regular lubrication (ISO VG32).
- Automated material handling vertical brakes
- Press machine safety interlocks
- Elevator emergency stop systems
- Robotic welding position retention
- Die-casting mold clamping safety
Installation note:
Mount vertically (±5° tolerance) with lock mechanism oriented downward.
Maintain 0.3-0.5 MPa residual pressure for optimal brake release.
Perform weekly manual lock/unlock cycling if idle >30 days.
| Property | Property Value |
|---|---|
| sku | SILB200X25 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | BSPT 3/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <200mm> |
| Stroke | <25 mm> |
| Lock Position | Rear Cover with Lock Type |
