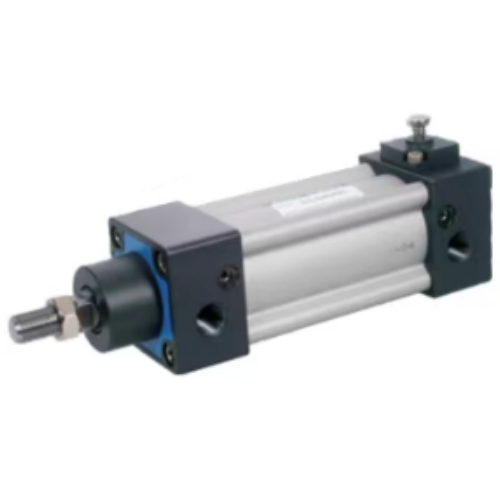

Airtac SILB Rear Locking Cylinder SILB200X250
2. Release mechanisms: automatic disengagement and manual release.
Category: Locking Cylinders | Brand: AirTAC | Series: SILB
AirTAC SILB200X250 Locking Cylinder Technical Specifications
- Model: SILB200X250
- Type: Double-acting cylinder with mechanical lock
- Bore size: Ø200mm
- Stroke: 250mm
- Operating pressure: 0.2–1.0 MPa
- Locking force: 12,500N (at 0.5MPa)
- Lock release pressure: ≥0.3MPa
- Cushioning type: Adjustable hydraulic buffer
- Mounting style: MF1 (front flange) / optional rear flange
- Port size: PT1-1/4 (G1-1/4 optional)
- Ambient temperature: -10℃ to 80℃
- Rod material: Hard chrome-plated SCM435 steel
- Tube material: Aluminum alloy with hard anodizing
- Seal material: NBR + PU combination
- Weight: 38.5kg ±2%
- Dimensions: 760mm(L) × 240mm(W) × 240mm(H)
Heavy-duty locking cylinder featuring dual safety mechanisms - spring-applied pneumatic release locking and position-holding valves. Integrated shock absorption system prevents piston rod deformation during emergency stops. Requires 5μm filtered air with ISO 8573-1:2010 class 3.2.1 air quality.
- Press machine safety interlock systems
- Automotive welding fixture position retention
- Die-casting mold clamping during tool changeover
- Elevator emergency braking mechanisms
- Heavy load vertical lifting pause control
Installation requirements:
Maintain ≤0.05mm/m alignment tolerance during mounting.
Requires weekly lubrication (ISO VG32 hydraulic oil) through air line lubricator.
Locking mechanism engages within 3 seconds after air pressure drop detection.
| Property | Property Value |
|---|---|
| sku | SILB200X250 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | BSPT 3/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <200mm> |
| Stroke | <250MM> → <250mm> |
| Lock Position | Rear Cover with Lock Type |
