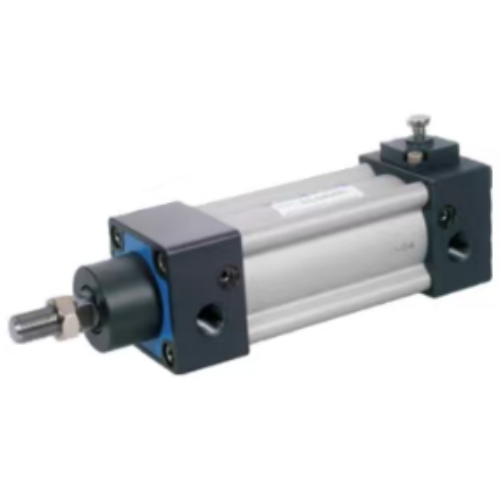

Airtac SILB Rear Locking Cylinder SILB200X75
2. Release mechanisms: automatic disengagement and manual release.
Category: Locking Cylinders | Brand: AirTAC | Series: SILB
AirTAC SILB200X75 Mechanical Spring Lock Cylinder Specifications
- Model: SILB200X75
- Type: Double-acting cylinder with integrated mechanical lock
- Bore size: Ø200 mm
- Stroke: 750 mm (standard), customizable up to 1,500 mm
- Operating pressure: 0.05–1.2 MPa
- Cushioning type: Adjustable pneumatic cushioning (both ends)
- Locking mechanism: Spring-applied brake with manual release option
- Temperature range: -20℃ to 80℃ (dry air required below 0℃)
- Port size: G1-1/2 (NPT1-1/2 optional)
- Mounting style: Standard MF1 flange (ISO 15552 compatible)
- Rod material: Hard chrome-plated steel (STAVAX stainless steel optional)
- Tube material: Anodized aluminum alloy
- Seal material: NBR (HNBR/Viton available for high-temp applications)
- Weight: 38.5 kg (base model)
- Dimensions: 1,240mm(L) × 280mm(W) × 280mm(H) (extended length at full stroke)
- Lock holding force: 18,000 N (max) at 0.5 MPa
- Response time: ≤0.3s (lock engagement/disengagement)
- Protection rating: IP66 (standard), IP67 with optional seals
Heavy-duty locking cylinder designed for vertical load holding and emergency position retention. Features dual safety with automatic spring lock engagement during power/pressure loss and manual override capability. Precision ground rod with wear-resistant coating ensures ≤0.01mm repeat positioning accuracy. Requires 5μm filtered lubricated air (ISO 8573-1 class 3.4.2).
- Automotive assembly line lifting equipment
- Die-casting machine core-pulling mechanisms
- Warehouse vertical shuttle storage systems
- Press brake tooling position locks
- Offshore platform maintenance platforms
Installation note:
Requires vertical mounting (±3° tolerance) with lock side downward.
Lubricator must maintain oil mist concentration of 1/500,000.
Monthly manual lock release exercise recommended for inactive systems.
| Property | Property Value |
|---|---|
| sku | SILB200X75 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | BSPT 3/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <200mm> |
| Stroke | 75mm |
| Lock Position | Rear Cover with Lock Type |
