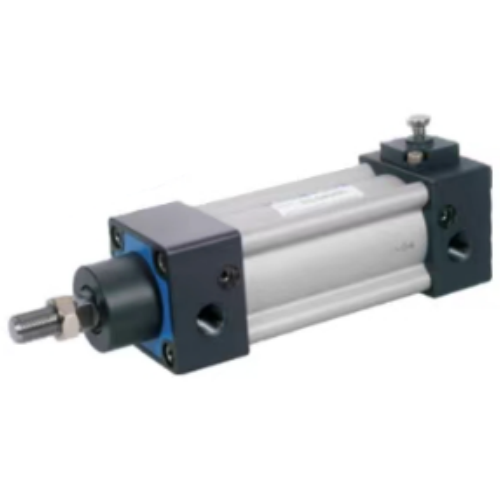

Airtac SILB Rear Locking Cylinder SILB200X80
2. Release mechanisms: automatic disengagement and manual release.
Category: Locking Cylinders | Brand: AirTAC | Series: SILB
AirTAC SILB200X80 Locking-Type Cylinder Specifications
- Model: SILB200X80
- Type: Double-acting cylinder with mechanical locking mechanism
- Bore size: 200mm
- Stroke: 80mm
- Operating pressure: 0.05–0.8 MPa
- Locking method: Spring-assisted mechanical brake
- Operation: Dual action (air pressure required for both extension/retraction)
- Cushioning: Adjustable pneumatic cushion at both ends
- Mounting: Standard ISO/VDMA mounting patterns (MF1/MF2/MF4 options)
- Port size: G3/8 (NPT1/2 optional)
- Temperature range: -20℃ to 80℃
- Material: Aluminum alloy cylinder tube, hardened stainless steel piston rod
- Seal material: NBR/PU compound seals
- Weight: ~12.5kg (excluding accessories)
- Dimensions: 400mm(L) × 200mm(W) × 200mm(H) (at fully retracted position)
- Rod thread: M20×1.5 external thread
- Protection rating: IP54 (standard), IP67 (optional wiper upgrade)
Heavy-duty locking cylinder designed for position retention during power/pneumatic failures. Features dual safety mechanisms: spring-applied brake engages automatically during pressure loss, while pneumatic locking activates during normal operation. Anodized surfaces provide corrosion resistance in humid environments.
- Automated production line emergency stops
- Vertical load holding in material handling systems
- Press machine safety interlocks
- Automotive fixture positioning with vibration resistance
- Theatrical stage machinery safety brakes
Installation requirements:
Requires minimum 0.3MPa unlocking pressure. Lubricate guide bushings with ISO VG32 hydraulic oil.
Avoid side load exceeding 50N. Perform monthly brake pad inspections under heavy cycling conditions.
| Property | Property Value |
|---|---|
| sku | SILB200X80 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 80°C Speed Range: 30-500 mm/s |
| Port Size | BSPT 3/4 |
| Magnet | Non-magnetic |
| Bore Diameter | <200mm> |
| Stroke | 80 mm |
| Lock Position | Rear Cover with Lock Type |
