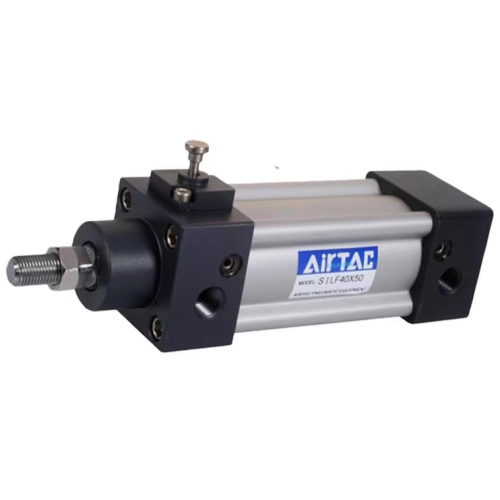

Airtac SILF Front Locking Air Cylinder SILF40X600S
$124.66
Regular price
$132.16
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
SILF40X600S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Locking cylinders are categorized into two configurations: Front Cover Locking Type and Rear Cover Locking Type.
2. Unlocking methods: Featuring automatic and manual unlocking operation modes.
Category: Locking Cylinders , Brand: AIRTAC , Series: SILF
Installation protocol:
Lock mechanism requires manual release via twist knob (2.5Nm torque) before initial operation.
Maintain minimum 0.3MPa pressure during locking engagement. Regular lubrication cycle: 500km stroke or 6 months.
2. Unlocking methods: Featuring automatic and manual unlocking operation modes.
Category: Locking Cylinders , Brand: AIRTAC , Series: SILF
AirTAC SILF40X600S Front Lock Cylinder Technical Details
- Model: SILF40X600S
- Type: Double-acting cylinder with mechanical lock
- Bore size: 40mm (ISO 6432 standard)
- Stroke: 600mm (±0.5mm tolerance)
- Operating pressure: 0.05–1.0 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable elastic cushion (both ends)
- Locking force: 1,200N max (at 0.5MPa)
- Mounting type: Basic (axial mounting accessories optional)
- Port size: M5x0.8 (Rc1/8/NPT1/8 optional)
- Rod material: Chrome-plated steel (S45C)
- Tube material: Aluminum alloy (hard anodized)
- Seal material: NBR + PU hybrid seals
- Weight: 3.8kg (excluding accessories)
- Dimensions: 1,070mm(L) × 56mm(W) × 56mm(H) (full extension)
- ISO certification: ISO 6432:2015 compliant
High-precision locking cylinder with fail-safe mechanical brake system. Features dual-stage sealing for leak prevention and tungsten-treated piston rod for scratch resistance. Requires 5-40μm filtered dry air with ISO VG32 lubricant (optional auto-lube adapter).
Industrial Applications:
- Vertical load positioning in automated assembly lines
- Safety locking in press machine tooling
- Position retention in material handling during power loss
- Precision fixturing for CNC machining centers
- Elevation control in solar panel cleaning robots
Installation protocol:
Lock mechanism requires manual release via twist knob (2.5Nm torque) before initial operation.
Maintain minimum 0.3MPa pressure during locking engagement. Regular lubrication cycle: 500km stroke or 6 months.
| Property | Property Value |
|---|---|
| sku | SILF40X600S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20℃ to 80℃ Speed Range: 30-800 mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Bore Diameter | <40mm> |
| Stroke | 600mm |
| Lock Position | Front Cover with Lock |
