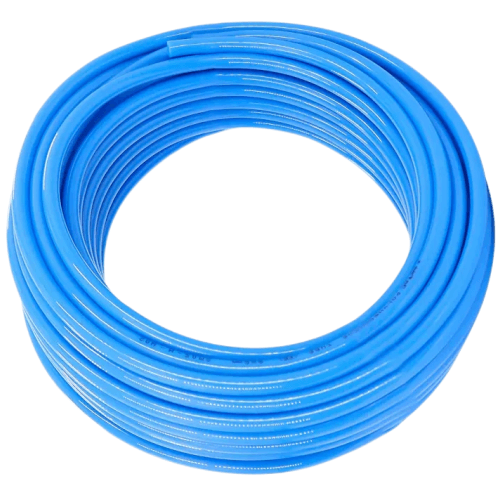

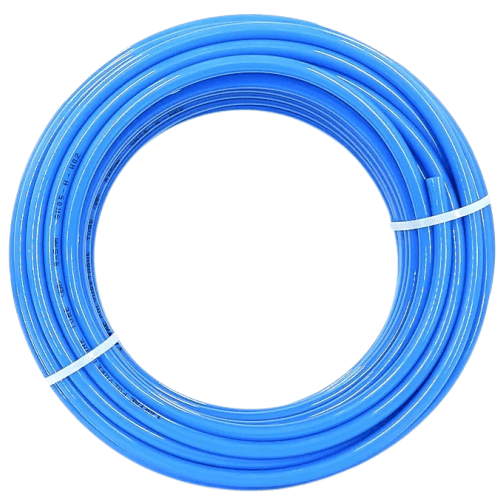

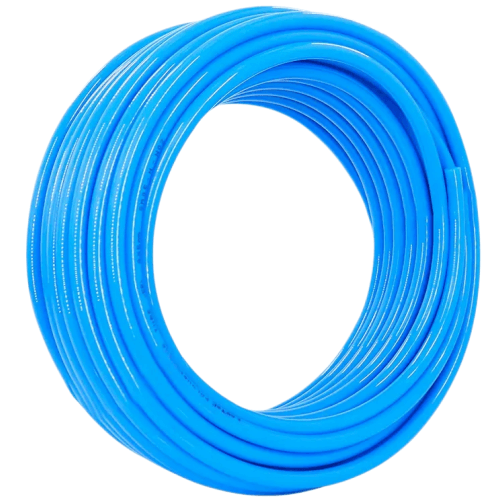

Airtac UE95A PU Pneumatic Hose UE95A040025100MBK
2、High elasticity: Minimal bending radius enables tight-space routing;
3、Anti-kinking properties: Superior resistance to coiling compared to conventional plastic tubes;
4、Exceptional shape memory: Withstands repeated expansion/contraction cycles;
5、Abrasion resistance: Extended service life in wear-prone environments;
6、Low gas permeability: Reduces leakage and contamination risks;
7、Excellent solvent resistance: Eliminates environmental pollution from fluid migration;
8、Minimal compression set: Maintains critical physical properties under load;
9、Media compatibility: Air/Water.
Category: Compressed Air Tubing , Brand: Airtac , Series: UE95A
AirTAC UE95A PU Pneumatic Hose Specifications
- Model: UE95A040025100MBK
- Material: Polyurethane (PU) with textile braid reinforcement
- Inner Diameter: 4.0 mm (±0.2 mm)
- Outer Diameter: 6.5 mm (±0.3 mm)
- Working Pressure: 0.8 MPa (8 bar) maximum
- Burst Pressure: ≥4.0 MPa (40 bar)
- Temperature Range: -20℃ to +60℃ (continuous use)
- Bending Radius: 20 mm minimum
- Length per Coil: 100 meters
- Color: Black (MBK code)
- Weight: 0.065 kg/m (±5%)
- Coil Dimensions: Ø300mm × W300mm × H150mm (standard packaging)
- Certification: ROHS compliant, REACH compliant
- Oil Resistance: Excellent (withstands ISO VG32 hydraulic oil)
- Abrasion Resistance: 4x better than standard PVC hoses
High-flex polyurethane pneumatic hose with embedded spiral reinforcement, engineered for demanding industrial environments. Features low compression set and memory retention, maintaining shape after repeated bending. The smooth inner bore minimizes pressure drop, while the anti-static design prevents dust accumulation.
- High-cycle pneumatic actuators in assembly lines
- CNC machine tool coolant systems
- Food processing equipment (FDA-compliant material option available)
- Mobile hydraulic systems in agricultural machinery
- Laboratory vacuum/pressure distribution networks
Installation guidelines:
Use spring guards in high-abrasion areas. Avoid sharp 90° bends - install with radius ≥5×OD.
For compressed air systems, maintain dew point below +3℃ to prevent moisture damage.
Maximum tensile load: 150N (15kgf).
| Property | Property Value |
|---|---|
| sku | UE95A040025100MBK |
| Inner Diameter | <2.5 mm> |
| Wall Thickness | <0.75 mm> |
| Outer Diameter | 4.0mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (°C): -40 to 70 |
| Bend Radius | <8mm> |
| Length per Roll | Stroke 100mm |
| Color | Black |
