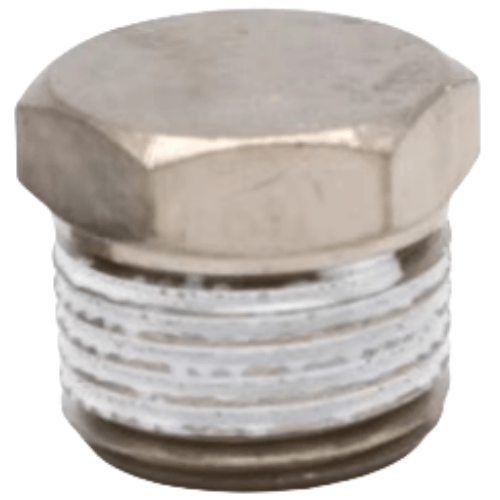

Airtac X-ABZ Connector - Hex Head Plug X-ABZ02
AirTAC X-ABZ02 Hex Plug Connector Technical Details
- Model: X-ABZ02
- Type: External hexagon plug (male thread)
- Material: Cold forged carbon steel (SCM435 equivalent)
- Surface treatment: Black oxide coating (5-8μm)
- Thread specification: M5×0.8 metric fine thread
- Wrench size: 8mm hex
- Installation torque: 2.0-3.5 N·m (dry)/1.5-2.5 N·m (lubricated)
- Pressure rating: 1.5 MPa max (static)/1.0 MPa (dynamic)
- Temperature range: -30℃ to 120℃
- Seal configuration: Integrated O-ring groove (NBR 70±5 Shore A)
- Weight: 4.7±0.2 grams
- Dimensions: 12mm(L) × 8mm(W) × 6mm(H)
- Thread engagement depth: 4.5mm
- Surface hardness: HV 450-550
Precision-machined port sealing solution with anti-vibration locking design. Features dual-stage sealing: metal-to-metal contact at base and elastic NBR seal for pressure containment. Compatible with ISO 1179-2 standard ports. Includes built-in wrench flats for tool-assisted tightening.
- Pneumatic manifold block port termination
- Hydraulic test point blanking
- Modular automation equipment port management
- CNC machine lubrication system junctions
- Compressed air distribution networks
Installation protocol:
Apply thread sealant (LOCTITE 5452 recommended) to male threads before assembly.
Torque in 3 progressive stages (30%, 70%, 100% of max value) using calibrated torque wrench.
Re-torque after 24hr thermal cycling.
| Property | Property Value |
|---|---|
| sku | X-ABZ02 |
