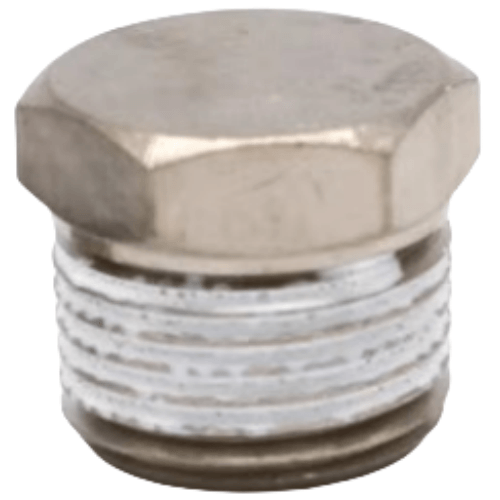

Airtac X-ABZ Connector - Hex Head Plug X-ABZ04
AirTAC X-ABZ04 Hex Plug (Port Plug) Technical Specifications
- Model: X-ABZ04
- Type: External hexagon port plug with O-ring seal
- Thread standard: Metric M5×0.8
- Compatible port size: 4mm tube OD
- Material: Brass (CuZn39Pb3) with nickel plating
- Surface hardness: ≥HV200
- Pressure rating: 0.05–1.5 MPa
- Temperature range: -5℃ to 100℃
- Installation torque: 0.5–0.7 N·m (manual tightening recommended)
- Weight: 1.8±0.2g
- Dimensions: 8mm (Hex width) × 9.5mm (Total length)
- Seal material: NBR rubber (70±5 Shore A)
- Vibration resistance: ≤10–55Hz, 1.5mm amplitude
Precision-engineered sealing plug featuring a corrosion-resistant hex design for secure port closure in pneumatic systems. The knurled sealing surface ensures leak-proof performance under cyclic pressure, while the compact form factor allows use in confined spaces. Compatible with ISO 15407-1 standard fittings.
- Blocking unused ports in pneumatic manifolds
- Maintenance access point sealing in automation equipment
- Temporary line closure during system debugging
- Pressure test point isolation in hydraulic circuits
- Vacuum system port protection
Installation guidance:
Use 8mm combination wrench for installation. Apply 360° rotation after initial hand-tight contact.
Avoid thread sealant - O-ring provides primary sealing. Inspect for deformation every 5,000 cycles.
