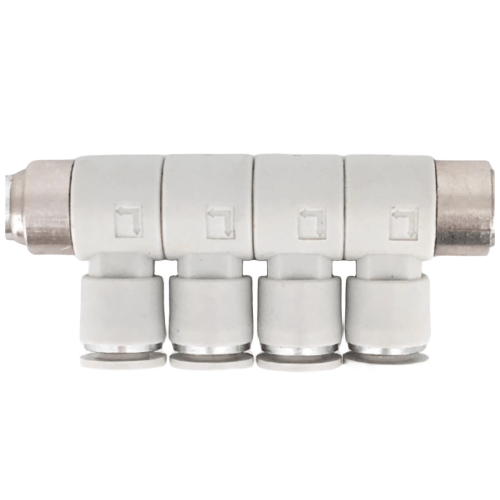

Airtac X-AFD Swivel Adjustable Hex Port Connector X-AFD10
AirTAC X-AFD10 Swivel Adjustable Hex Tee Fitting Technical Details
- Model: X-AFD10
- Type: 360° Rotatable 6-way connector (hexagonal manifold)
- Thread standard: Metric M5×0.8 & PT1/8 dual markings
- Material: Nickel-plated brass body, CR rubber seals
- Max working pressure: 1.0 MPa (145 psi)
- Proof pressure: 1.5 MPa
- Temperature range: -5℃ to 80℃ (dry air)
- Port configuration: 6 outlets (radial) + 1 axial through-hole
- Rotation torque: ≤0.3 N·m (free rotation threshold)
- Weight: 82g ±2g
- Dimensions: 30mm (W) × 30mm (H) × 34mm (D)
- Surface hardness: HV300-350 (nickel coating)
- Vibration resistance: 10-2000Hz, 15G acceleration
Modular pneumatic distribution block enabling dynamic tubing layouts through its unique radial swivel design. Features dual-thread compatibility and tool-free rotational adjustment (±5° per click) for precise alignment. The axial through-port allows daisy-chaining multiple units. Sealing lip design prevents thread galling during rotation.
- Multi-axis robotic end effectors requiring compact air distribution
- Modular pneumatic test benches with reconfigurable circuits
- Automated packaging lines with rotating machine elements
- Medical device pneumatic controls needing vibration-resistant connections
- 3D printer auxiliary air supply manifolds
Installation protocol:
Apply 2-3 wraps of PTFE tape on male threads (exclude sealant on swivel surfaces).
Torque limit: 1.2-1.5 N·m. Rotate fittings before final tightening.
Maximum recommended angular adjustment cycles: 500 rotations.
Avoid using with aggressive chemicals (pH <4 or >11).
For vertical installations, position axial port downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | X-AFD10 |
