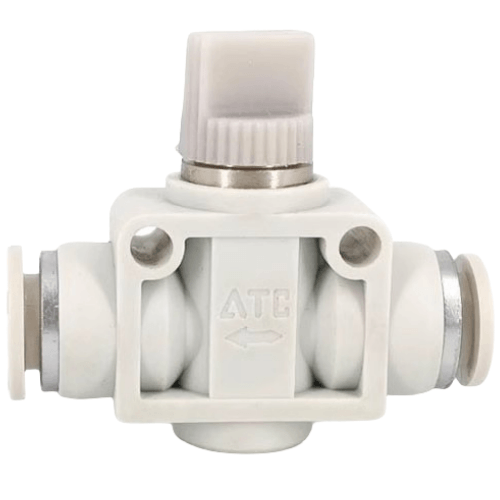

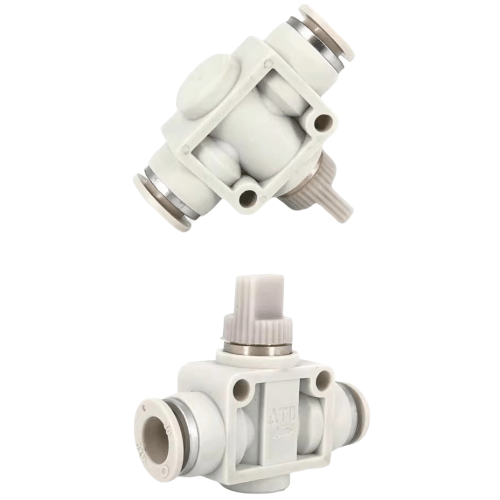

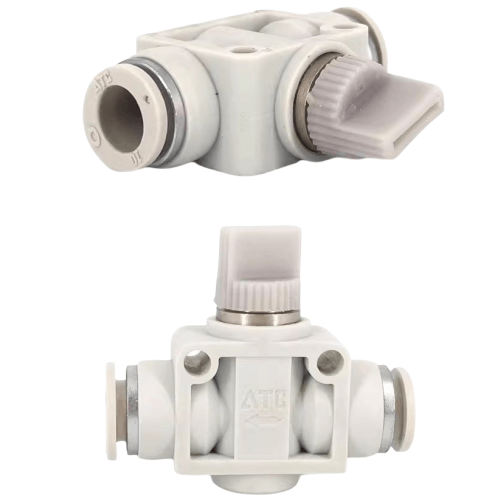

Airtac X-AHVFF Manual Valve X-AHVFF0808
AirTAC X-AHVFF0808 Manual Hand Valve Specifications
- Model: X-AHVFF0808
- Type: 3-position manual valve (Push-Pull-Lock)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.1–0.8 MPa (14.5–116 PSI)
- Flow capacity: 650 NL/min (ANR)
- Actuation force: ≤20N (Locking mechanism)
- Valve body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 285g ±5g
- Dimensions: 78mm(L) × 40mm(W) × 35mm(H)
- Port thread depth: 10mm (dual O-ring sealing)
- Cycle life: >500,000 operations
- Protection rating: IP67 (dust/water resistant)
Ergonomic manual override valve with positive locking mechanism, featuring dual-stage detent positioning for precise flow control. The chrome-plated steel actuator shaft ensures smooth operation even in high humidity environments. Designed for systems requiring manual intervention without electrical power.
- Emergency shutdown systems in pneumatic circuits
- Production line maintenance bypass control
- Mobile hydraulic/pneumatic equipment manual override
- Process control system calibration
- Educational training equipment
Installation note:
Apply silicone-free lubricant (ISO VG32 grade) to O-rings before installation.
Maximum tightening torque: 2.5Nm. Avoid side-loading during operation.
| Property | Property Value |
|---|---|
| sku | X-AHVFF0808 |
