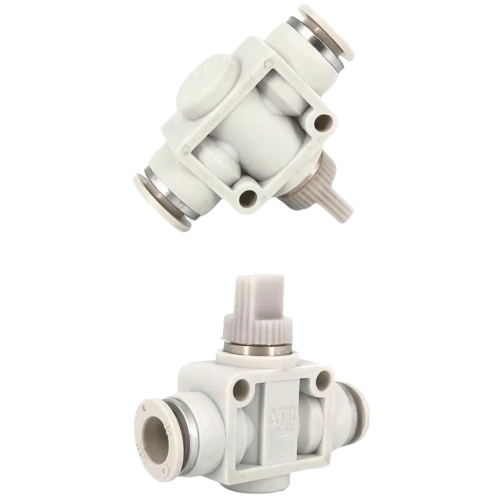

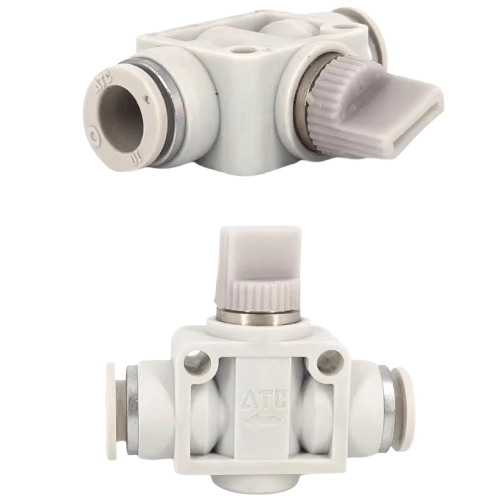

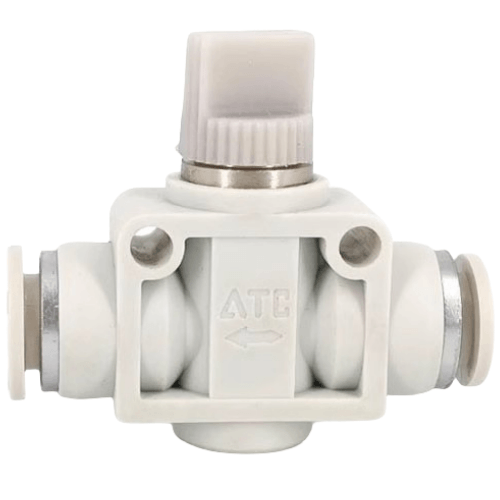

Airtac X-AHVFF Manual Valve X-AHVFF1010
AirTAC X-AHVFF1010 Manual Valve Technical Specifications
- Model: X-AHVFF1010
- Type: 2-position 5-way manual valve (detented lever operation)
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhausts)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.2–0.8 MPa (29–116 PSI)
- Max flow rate: 750 NL/min (ANR)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile), optional FKM (Viton)
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Manual override force: ≤3.5 N
- Weight: 480g ±5% (1.06 lbs)
- Dimensions: 98mm(L) × 52mm(W) × 43mm(H) (3.86" × 2.05" × 1.69")
- Mounting options: Panel mount (accessory bracket included)
- Compliance: RoHS 2.0 compliant
Robust manual override valve designed for pneumatic system control and emergency operation. Features dual-color position indicator (green/red) and positive detent mechanism for precise port alignment. The hardened stainless steel shaft and wear-resistant bushings ensure 500,000+ cycle durability. Compatible with ISO 15407-1 standards.
- Production line emergency stop systems
- Pneumatic press safety override controls
- Training simulators for industrial automation
- Mobile hydraulic equipment manual backup
- Test bench pneumatic circuit configuration
Installation guidelines:
Lubricate pivot points with ISO VG32 hydraulic oil before initial use.
Ensure exhaust ports face downward when mounted vertically.
Maximum allowable side-load on lever: 15N.
