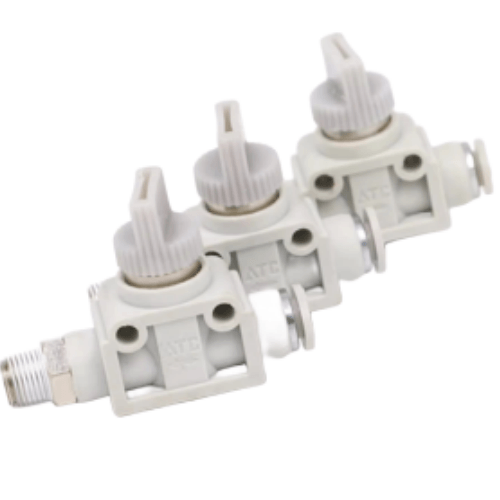

Airtac X-AHVFS Hand Valve X-AHVFS0601B
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
AirTAC X-AHVFS0601B Manual Valve Specifications
- Model: X-AHVFS0601B
- Type: 2-position 5-way manual valve (spring return)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Manual operation type: Rotary lever with 60° stroke
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 220g ±5g
- Dimensions: 60mm(L) × 42mm(W) × 40mm(H)
- Flow capacity: 800 l/min (Cv=1.2 at 0.5MPa)
- Protection rating: IP40 (dust protected)
- Mounting: Direct panel mounting with M4 screws
Industrial-grade manual override valve designed for pneumatic system maintenance and emergency control. Features ergonomic lever design with tactile position feedback and wear-resistant pivot mechanism. Ideal for systems requiring local manual intervention without electrical power. Compatible with ISO 15407-1 standards.
- Production line emergency stop systems
- Pneumatic cylinder manual override control
- Equipment maintenance lockout procedures
- Air circuit troubleshooting stations
- Training simulator panels
Operation note:
Apply maximum 5N force to lever during actuation. Lubricate pivot point
with ISO VG32 hydraulic oil every 10,000 cycles. Ensure full port alignment
during installation to prevent air leakage.
| Property | Property Value |
|---|---|
| sku | X-AHVFS0601B |
