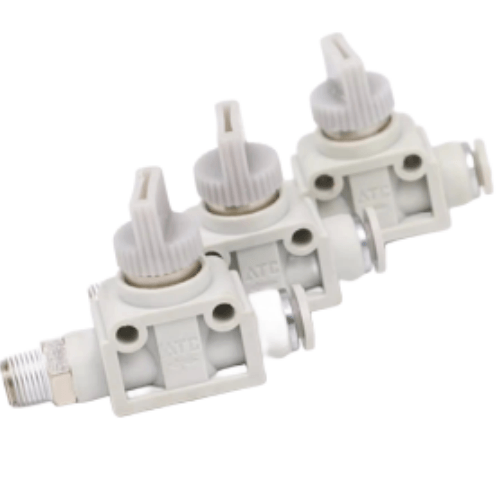

Airtac X-AHVFS Hand Valve X-AHVFS0803B
AirTAC X-AHVFS0803B Manual Valve Specifications
- Model: X-AHVFS0803B
- Type: 3-position (Open/Exhaust/Closed) manual directional valve
- Port size: G1/8 (BSPP thread)
- Operating pressure: 0.1–1.0 MPa
- Maximum flow: 300 NL/min
- Body material: Anodized aluminum alloy
- Seal material: High-grade NBR (Nitrile)
- Temperature range: -20℃ to 80℃
- Actuation type: Rotary lever with position lock
- Weight: 220g ±5g
- Dimensions: 80mm(L) × 32mm(W) × 34mm(H)
- Port configuration: P (pressure), A (output), R (exhaust)
- Mounting: Panel mount with M5 fasteners
- Leakage rate: ≤3 bubbles/min (ISO 6952 standard)
Robust manual override valve featuring triple-position control with tactile feedback. The chrome-plated lever offers 120° rotation arc with positive detents for precise flow management. Designed for systems requiring manual intervention without disassembly, with anti-corrosion treatment for humid environments.
- Emergency shutdown systems in pneumatic circuits
- Production line maintenance bypass control
- Hydraulic system pressure testing setups
- Educational training equipment for fluid dynamics
- Compressed air tool manual override stations
Operation guidance:
Apply 2-3Nm torque during lever rotation. Lubricate pivot point annually with ISO VG32 oil.
For horizontal mounting, ensure exhaust port faces downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | X-AHVFS0803B |
