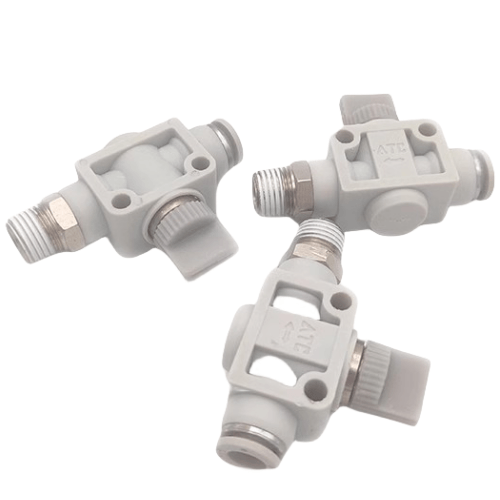

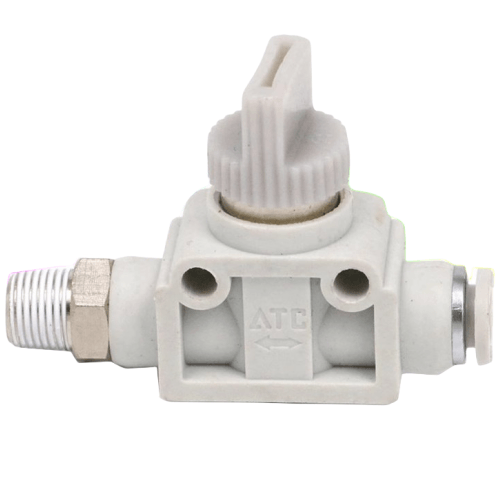

Airtac X-AHVSF Handle Valve X-AHVSF0106B
AirTAC X-AHVSF0106B Manual Valve Technical Details
- Model: X-AHVSF0106B
- Type: 3-position manual valve (Push-Pull-Lock)
- Port configuration: 1/4" BSPP (G1/4)
- Operating pressure range: 0.05–1.0 MPa
- Maximum flow rate: 800 NL/min
- Actuation force: 3.5–4.2 N (lever operation)
- Body material: Aluminum alloy (anodized finish)
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature resistance: -20℃ to 80℃
- Weight: 325g ±5g
- Dimensions: 98mm(L) × 42mm(W) × 35mm(H)
- Port thread depth: 12mm (male threads)
- Operating cycles: ≥500,000 (MTBF)
Industrial-grade manual override valve with positive locking mechanism, featuring triple sealing surfaces for leak-free operation. The ergonomic lever design allows single-finger operation with tactile position feedback. Compatible with ISO 15407-1 standards, with anti-corrosion coating for humid environments.
- Emergency bypass in automated production lines
- Maintenance override for robotic actuator systems
- Pressure regulation in hydraulic test benches
- Manual control in plastic injection molding machines
- Material handling equipment safety interlocks
Installation guidelines:
Apply 15-20Nm torque during port connection. Lubricate O-rings with
silicone grease (ASG-46 spec) before assembly. For horizontal mounting,
ensure lever movement plane aligns with operator access direction.
