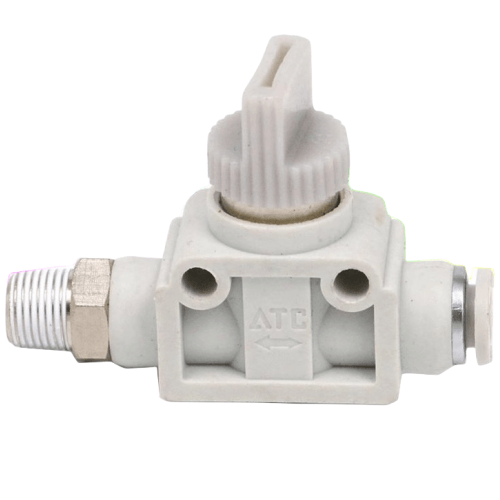

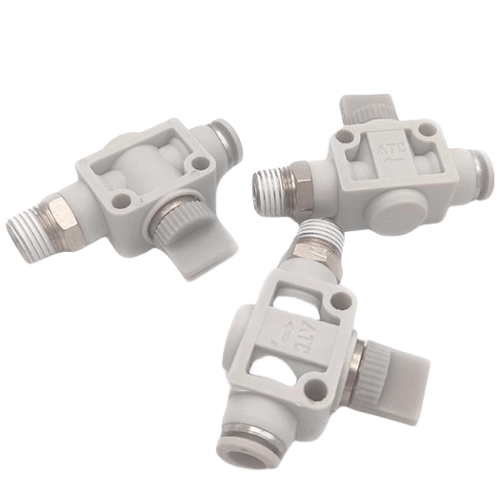

AirTAC X-AHVSF0306B Manual Valve Technical Details
- Model: X-AHVSF0306B
- Type: 3-position (3/3-way) manual lever-operated directional valve
- Port size: PT1/4 (G1/4 equivalent)
- Thread standard: BSPP (parallel thread)
- Operating pressure: 0.2–1.0 MPa (29–145 psi)
- Max flow rate: 650 NL/min (at 0.5 MPa)
- Actuation force: ≤5 N (lever operation)
- Body material: Anodized aluminum alloy (AL6063-T5)
- Seal material: HNBR rubber (-20℃ to 120℃)
- Weight: 280g ±5g (including fittings)
- Dimensions: 56mm(L) × 38mm(W) × 78mm(H)
- Port spacing: 18mm between adjacent ports
- Mounting options: Direct piping or subplate mounting (ISO 4401 pattern)
- Leakage: ≤3 bubbles/min (ISO 6953-2 standard)
Robust manual override valve with visual position indicator and positive detent mechanism. Features triple-sealed spindle design with dust-resistant toggle lever. The ergonomic 45° lever angle allows single-finger operation even with gloves. Requires ISO VG32 hydraulic oil lubrication if used in high-cycle applications (>10,000 operations).
- Emergency bypass in automated production lines
- Maintenance override for robotic welding stations
- Manual mode switching in hydraulic test benches
- Safety isolation in plastic injection molding machines
- Position locking for pneumatic clamping systems
Installation guidelines:
For vertical mounting (preferred orientation), install with lever axis
perpendicular to vibration sources. Apply 2-3 drops of AirTAC PX-10
silicone oil monthly in high-cycling environments. Maximum allowable
side load on ports: 15N·m torque.
