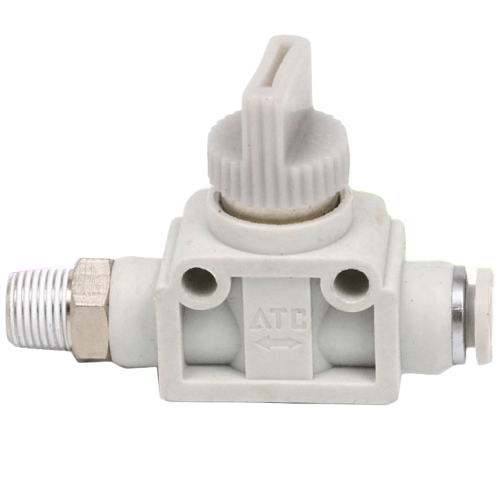

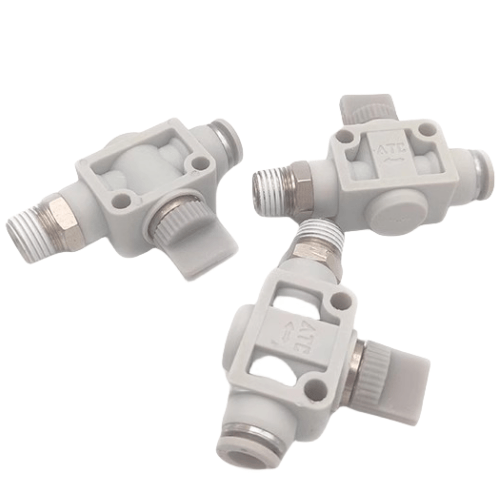

Airtac X-AHVSF Handle Valve X-AHVSF1204B
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
AirTAC X-AHVSF1204B Manual Valve Technical Details
- Model: X-AHVSF1204B
- Type: 3-position (Lever Lock) / 4-way directional control
- Port size: G1/4 (ISO228/1 standard)
- Operating pressure range: 0.05–1.0 MPa
- Maximum flow rate: 800 NL/min (ANR)
- Body material: Die-cast aluminum alloy (hard anodized)
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE coating
- Temperature resistance: -20℃ to 80℃ (continuous operation)
- Actuation force: ≤3.5 N·m (lever torque)
- Mounting style: Sub-base or side-mount (ISO 5599-1 compliant)
- Weight: 480 ±10g (including mounting hardware)
- Dimensions: 62mm(W) × 45mm(H) × 98mm(L) (excluding lever protrusion)
- Port thread depth: 12mm (full engagement recommended)
- Leakage rate: ≤3 bubbles/min (under 0.5 MPa air pressure)
- Cycle life: ≥1,000,000 operations (JIS B 8377 standard)
Industrial-grade manual override valve featuring triple sealing technology and anti-vibration lock mechanism. The ergonomic lever design provides 180° smooth rotation with positive tactile feedback. Features redundant O-ring seals in critical flow paths and hardened stainless steel shaft bearings. Compatible with ISO 8573-1:2010 Class 3 compressed air quality (max 5mg/m³ oil content).
- Emergency bypass control in automated production lines
- Maintenance override for robotic welding cell pneumatics
- Manual mode switching in plastic injection molding machines
- Safety isolation in semiconductor fab equipment
- Troubleshooting actuator systems in automotive assembly
Installation guidelines:
Apply thread sealant only on male ports (not NPT threads).
Lubricate shaft quarterly with MIL-PRF-81322 grease.
Maximum lateral force on lever: 15N.
Not suitable for vacuum applications below -0.8 bar.
