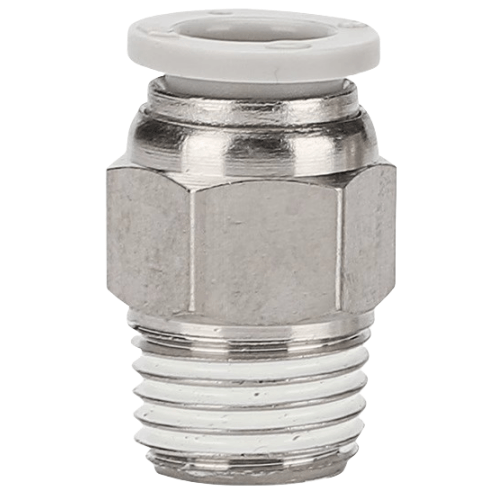

Airtac X-APC Threaded Straight Connector X-APC1004
$4.20
Regular price
$11.70
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APC1004
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APC1004 Threaded Straight Connector Technical Details
- Model: X-APC1004
- Type: Male-to-female threaded straight connector
- Thread standard: PT1/8 (BSPP) or NPT1/8 optional
- Material: Brass (nickel-plated surface)
- Max working pressure: 1.5 MPa (217 psi)
- Pressure range: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃
- Seal type: Integral O-ring (NBR material)
- Hex size: 12mm wrench flat
- Weight: 18g ±0.5g
- Dimensions: 28mm(L) × 12mm(W) × 12mm(H)
- Surface roughness: Ra ≤3.2μm
- Installation torque: 1.5-2 Nm (13-18 lb-in)
- Compliance: RoHS compliant
Precision-machined pneumatic connector with dual-sealing structure for leak-free performance. Features 360° rotatable female end for flexible piping alignment. The electroless nickel plating provides corrosion resistance exceeding 96hrs salt spray test (ASTM B117).
Typical Applications:
- Modular pneumatic circuit assembly
- Air preparation unit manifold connections
- Robotic end effector air supply lines
- Compressed air instrumentation interfaces
- Vacuum system component integration
Installation protocol:
Apply PTFE tape clockwise on male threads (2-3 wraps).
Avoid over-tightening - use torque wrench for critical applications.
Conduct pressure test at 1.8MPa after installation.
| Property | Property Value |
|---|---|
| sku | X-APC1004 |
