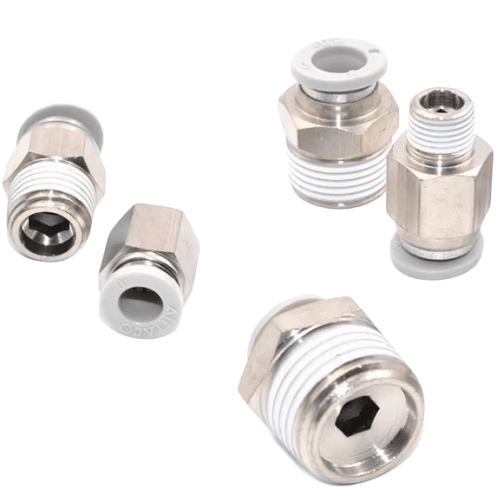

Airtac X-APC Threaded Straight Connector X-APC12M20
AirTAC X-APC12M20 Threaded Straight Fitting Technical Details
- Full model designation: X-APC12M20
- Series: X-APC (Heavy Duty Threaded Connector Series)
- Thread specification: M20×1.5 external threads both ends
- Material composition: Stainless steel 303 body with NBR O-ring seal
- Max working pressure: 1.5 MPa (217 psi)
- Proof pressure: 3.0 MPa
- Burst pressure: 6.0 MPa
- Temperature tolerance: -20℃ to 80℃ (-4°F to 176°F)
- Surface treatment: Electropolished internal bore
- Flow coefficient (Cv): 0.35
- Vibration resistance: ≤10Hz @ 2mm amplitude
- Weight: 32g ±1g
- Dimensions: 35mm(L) × 20mm(Diameter) × 20mm(Hex width)
- Compliance standards: ISO 1179-1 metric connector specifications
Industrial-grade pneumatic coupler designed for high-vibration environments, featuring dual anti-vibration teeth and pressure-adaptive sealing. The through-hole design maintains 95% original tube ID for minimal flow restriction. Nickel-plated hex section prevents tool slippage during installation.
- Hydraulic/pneumatic power unit manifold blocks
- CNC machine tool lubrication line junctions
- Agricultural equipment pneumatic seeders
- Robotic arm end-effector air supply connections
- Compressed air drying system manifolds
Installation protocol:
Apply 2.5-3 wraps of PTFE tape clockwise on male threads.
Torque to 28-32 N·m using crowfoot wrench.
Perform pressure test at 1.25× working pressure after installation.
