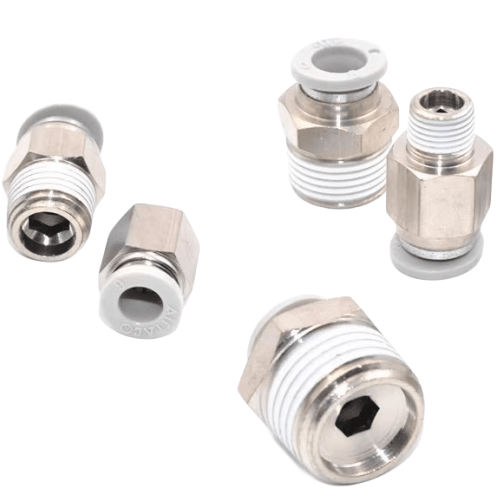

Airtac X-APC Threaded Straight Connector X-APC604
AirTAC X-APC604 Threaded Straight Connector Technical Details
- Model: X-APC604
- Type: Metric threaded straight-through fitting
- Body material: Stainless steel (SUS303) with chrome plating
- Seal material: NBR (Nitrile) rubber O-ring
- Thread specification: M5×0.8 female-to-female
- Max working pressure: 1.5 MPa (217 psi)
- Proof pressure: 3.0 MPa
- Burst pressure: ≥6.0 MPa
- Temperature range: -20℃ to 80℃ (continuous use)
- Surface hardness: HV500±50
- Hex size: 8mm wrench flat
- Weight: 8.2±0.5g
- Dimensions: 18mm(L) × 8mm(W) × 8mm(H)
- Thread engagement depth: 4.5mm per side
- Flow coefficient (Cv): 0.12
- Vibration resistance: 10-2000Hz, 5G acceleration
Precision-machined connector featuring dual O-ring seals and anti-vibration thread design. The chrome-plated surface provides corrosion resistance in humid environments. Hexagonal body allows tool tightening with 35-45N·m torque capacity. Compatible with pneumatic and low-viscosity hydraulic fluids (ISO VG32 or lighter).
- Modular pneumatic manifold assemblies
- Sensor mounting interfaces
- Compact cylinder port extensions
- Vacuum system component junctions
- Robotic end-effector pneumatic lines
- Medical device gas delivery systems
Installation protocol:
Apply thread sealant (PTFE tape or liquid) to male threads only.
Avoid overtightening - maximum recommended torque 5N·m.
Perform pressure test at 1.25× working pressure after installation.
