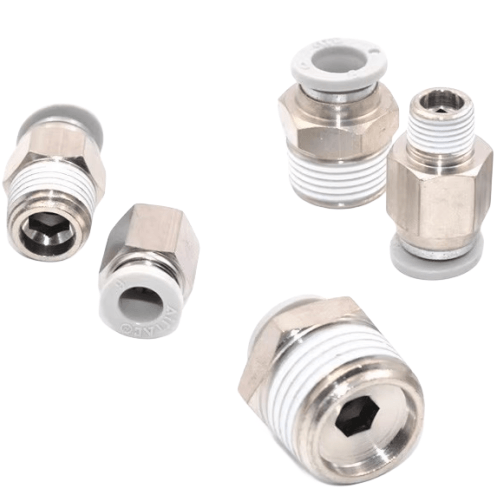

Airtac X-APC Threaded Straight Connector X-APC6M5
AirTAC X-APC6M5 Threaded Straight Fitting Technical Details
- Model: X-APC6M5
- Type: Metric thread straight connector
- Thread specification: M5×0.8 (male thread both ends)
- Material: Brass with nickel plating (CuZn39Pb3)
- Surface hardness: ≥200HV
- Pressure rating: 0-1.0 MPa (145 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal type: Integral O-ring (NBR 70±5 Shore A)
- Flow coefficient (Cv): 0.07
- Leakage rate: ≤3 bubbles/min under 0.5 MPa air pressure
- Weight: 5.2±0.3g
- Dimensions: 15mm(L) × 8mm(Dia) × 8mm(Dia)
- Thread engagement: 4mm minimum
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined straight through fitting with dual male threads, designed for compact pneumatic circuit connections. Features corrosion-resistant nickel plating and permanent-mount O-ring that eliminates separate sealing components. The 360° rotatable design allows flexible orientation during plumbing alignment.
- Modular pneumatic manifold interconnections
- Sensor mounting brackets in automation cells
- Miniature valve terminal port extensions
- Laboratory pneumatic tool air supply lines
- Robotic end-effector pneumatic routing
Installation protocol:
Apply thread sealant only on male threads (not on O-ring surface).
Tighten to 0.7-1.2 N·m torque using 7mm wrench flats.
Pressure test at 1.5× operating pressure after installation.
