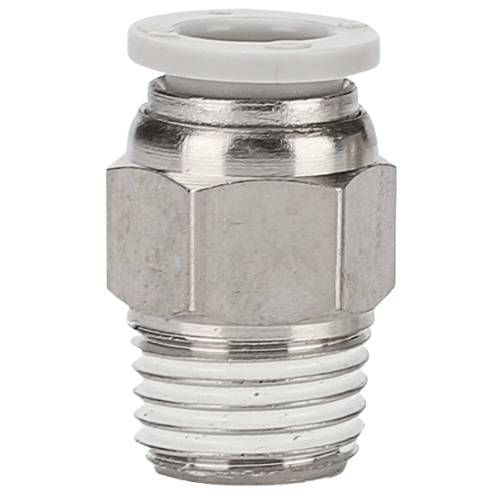

Airtac X-APC Threaded Straight Connector X-APC6M8
$3.01
Regular price
$10.51
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APC6M8
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APC6M8 Threaded Straight Fitting Technical Details
- Model: X-APC6M8
- Series: X-APC (Precision Pneumatic Connectors)
- Thread type: M8×1.0 external male thread (both ends)
- Material: Brass (CuZn39Pb3) with nickel-plated surface
- Seal type: Integrated NBR O-ring (pre-lubricated)
- Pressure rating: 0-1.0 MPa
- Temperature range: -20℃ to 80℃
- Proof pressure: 1.5 MPa
- Flow coefficient (Cv): 0.35
- Weight: 15g ±1g
- Dimensions: 20mm(L) × 8mm(Dia) × 8mm(Dia)
- Surface roughness: Ra ≤1.6μm
- Certifications: RoHS compliant, REACH SVHC-free
High-density machined brass fitting with dual-purpose sealing system (metal-to-metal contact + elastic seal). Features anti-vibration grooves and reverse-helix thread design for secure connections in dynamic pneumatic systems. Compatible with ISO 16030 standard adapters.
Typical Applications:
- Modular pneumatic manifolds in robotics
- Sensor mounting interfaces on CNC machines
- Vacuum circuit connections in packaging lines
- Tool-free maintenance ports in HVAC systems
- Medical gas line service panels
Installation guidance:
Apply 0.8-1.2 N·m torque during assembly. For vertical installations,
use thread sealant on male threads below fluid level. Maximum
15° angular misalignment allowed during connection.
| Property | Property Value |
|---|---|
| sku | X-APC6M8 |
