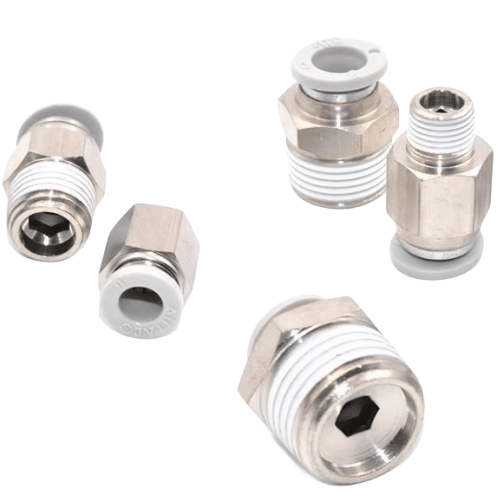

Airtac X-APC Threaded Straight Connector X-APC803
AirTAC X-APC803 Threaded Straight Fitting Technical Details
- Model: X-APC803
- Type: Threaded straight-through connector (male to male)
- Material: Nickel-plated brass (stainless steel optional)
- Thread standard: PT1/8 (BSPP) female threads both ends
- Through hole diameter: 3.0mm ±0.1mm
- Max working pressure: 1.5 MPa (15 bar)
- Burst pressure: ≥4.5 MPa
- Temperature range: -20℃ to 150℃ (with standard seals)
- Seal material: NBR (Nitrile) rubber standard (FKM/Viton available)
- Surface treatment: Electrolytic nickel plating (3-5μm thickness)
- Weight: 18.5g ±0.5g
- Dimensions: 22mm (L) × 14mm (W) × 14mm (H)
- Torque specification: 3.5-4.5 N·m during installation
- Fluid compatibility: Air, inert gases, water-glycol mixtures
Precision-engineered pneumatic connector featuring dual-end female threads for inline piping connections. The electroplated surface provides corrosion resistance in humid environments, while the tapered thread design ensures leak-free sealing under dynamic pressure conditions. Includes integrated O-ring grooves for positive seal retention.
- Branch line connections in pneumatic manifolds
- Sensor mounting interfaces on automation equipment
- Vacuum system plumbing in packaging machinery
- Coolant line junctions in CNC tooling systems
- Compressed air distribution in automotive assembly
Installation protocol:
Apply thread sealant to male components only (not required for tapered threads).
Avoid overtightening - use torque wrench for critical applications.
Perform pressure test at 1.25× working pressure after installation.
