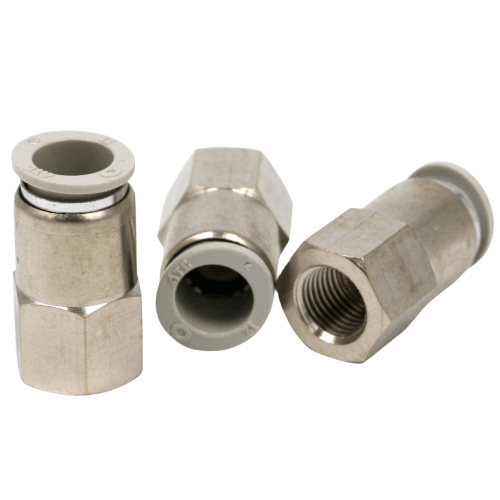

Airtac X-APCF Female Thread Straight Connector X-APCF1001
$3.79
Regular price
$11.29
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCF1001
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCF1001 Internal Thread Straight Fitting Specifications
- Model: X-APCF1001
- Type: Female thread straight connector (metric)
- Thread standard: M5×0.8 internal thread (both ends)
- Material: Stainless steel 303 (rust-resistant)
- Seal type: Built-in O-ring (NBR 70±2 Shore A)
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Surface finish: Electropolished (Ra ≤0.8μm)
- Flow capacity: 350 NL/min @0.5MPa
- Weight: 12.5g ±0.3g
- Dimensions: 22mm(L) × 10mm(OD) × M5 thread depth 8mm
- Certification: RoHS compliant
- Proof pressure: 1.5 MPa (150% rated pressure)
Precision-machined pneumatic connector with dual internal threads, designed for leak-free connections in compact pneumatic circuits. Features corrosion-resistant construction and integrated sealing for high-pressure stability. Compatible with 4mm OD tubing (not included).
Typical Applications:
- Pneumatic valve manifold interconnections
- Sensor air supply line installations
- Medical device gas delivery systems
- Robotic end-effector pneumatic circuits
- Laboratory analytical instrument plumbing
Installation protocol:
Apply thread sealant (PTFE tape or liquid sealant) to male threads before assembly.
Tighten to 0.7-1.2 N·m torque using crowfoot wrench.
Max 180° rotation after hand-tight engagement.
| Property | Property Value |
|---|---|
| sku | X-APCF1001 |
