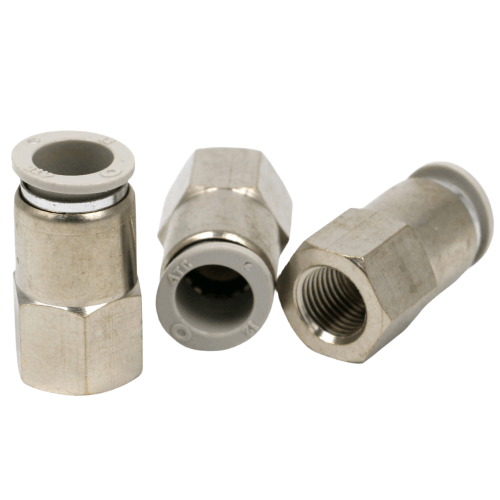

Airtac X-APCF Female Thread Straight Connector X-APCF1003
$4.31
Regular price
$11.81
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCF1003
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCF1003 Internal Thread Straight Connector Specifications
- Model: X-APCF1003
- Type: Internal thread straight connector (male to female)
- Thread standard: PT1/8 (BSPP)
- Material: Brass with nickel plating
- Seal material: NBR (Nitrile rubber)
- Max working pressure: 1.5 MPa
- Temperature range: -20℃ to 80℃
- Thread engagement length: 8.5mm
- Hex size: 12mm wrench flat
- Weight: 13.5g ±0.5g
- Dimensions: 20mm(L) × 12mm(W) × 8mm(H)
- Surface roughness: Ra ≤3.2μm
- Pressure test: 2.25 MPa (1.5x rated pressure)
Precision-machined straight connector with corrosion-resistant nickel coating, designed for leak-free transitions in pneumatic systems. Features full-flow design (100% port matching) to minimize pressure drop. Compatible with air, water, and light oil media.
Typical Applications:
- Pneumatic cylinder port extensions
- Modular assembly in automation equipment
- Instrumentation air line connections
- CNC machine tool coolant line adapters
- Food processing equipment plumbing
Installation guidance:
Apply 1.5-2 wraps of PTFE tape on male threads.
Tighten to 8-10 N·m torque using backup wrench on hex flats.
Avoid overtightening to prevent thread deformation.
Compatibility note:
Not recommended for use with strong acids/alkalis or
hydraulic fluids exceeding ISO VG32 viscosity.
| Property | Property Value |
|---|---|
| sku | X-APCF1003 |
