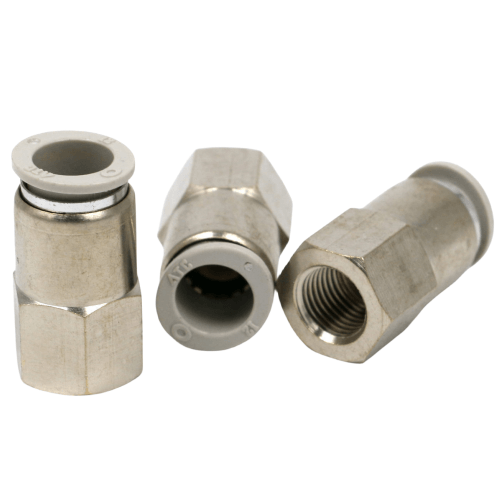

Airtac X-APCF Female Thread Straight Connector X-APCF1201
$4.41
Regular price
$11.91
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCF1201
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCF1201 Female Threaded Straight Connector Specifications
- Model: X-APCF1201
- Type: Female Threaded Straight (Double Ferrule)
- Thread Standard: Metric (M5×0.8 internal thread)
- Material: C3604 Free-cutting brass (RoHS compliant)
- Surface Treatment: Electroless nickel plating (5-8μm)
- Pressure Rating: 1.5 MPa (15 bar) maximum
- Temperature Range: -20℃ to 120℃ (continuous use)
- Tube Compatibility: Ø4mm (1/8") OD pneumatic tubing
- Seal Type: Integrated NBR O-ring (70±5 Shore A)
- Torque Limit: 1.2-1.5 N·m during installation
- Weight: 8.2±0.3 grams
- Dimensions: 20mm(L) × 12mm(W) × 12mm(H)
- Certifications: ISO 6150-B standard compliant
A precision-machined brass connector featuring dual stainless steel ferrules for vibration resistance and leak-free performance. The tapered thread design enables secure sealing without thread-locking compounds. Nickel plating provides corrosion protection in humid environments.
Typical Applications:
- Pneumatic valve manifold interconnections
- CNC machine tool air supply lines
- Packaging machine sensor air circuits
- Semiconductor equipment gas distribution
- Automotive assembly line tooling
Installation note:
Apply 2-3 wraps of PTFE tape on male threads (if used).
Tighten until ferrule makes 1.25-1.75 rotations after initial tube contact.
Avoid side-loading during pneumatic system assembly.
| Property | Property Value |
|---|---|
| sku | X-APCF1201 |
