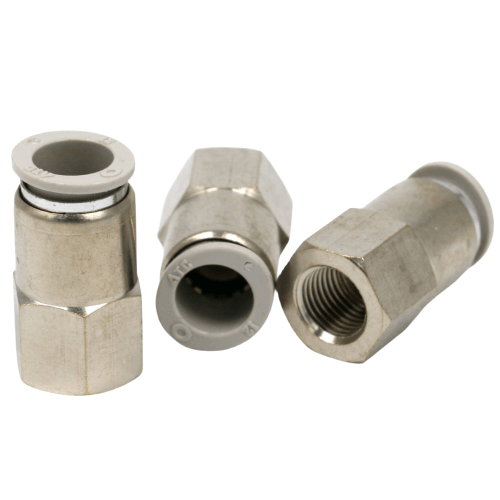

Airtac X-APCF Female Thread Straight Connector X-APCF4M10
$3.12
Regular price
$10.62
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCF4M10
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCF4M10 Female Threaded Straight Connector Specifications
- Model: X-APCF4M10
- Type: Female-threaded straight connector (metric series)
- Thread specification: M10×1.5 internal thread (ISO 1179-1 compliant)
- Material: Brass with nickel plating (CuZn39Pb3)
- Pressure range: 0.05–1.5 MPa (7–217 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: NBR rubber (oil-resistant grade)
- Surface hardness: ≥HV200
- Proof pressure: 2.25 MPa (326 psi)
- Weight: 18g ±0.5g
- Dimensions: 30mm(L) × 14mm(Ø) × M10 thread depth 8mm
- Flow coefficient (Cv): 0.15
- Vibration resistance: 10–55Hz, 1.5mm amplitude
- Certifications: RoHS compliant, ISO 1179-1 standard
Precision-machined pneumatic connector with full-flow design for minimal pressure drop. Features anti-vibration thread locking structure and oxidation-resistant nickel plating. Compatible with ISO 1179-1 metric pneumatic systems. Includes built-in O-ring for leak-free connections.
Typical Applications:
- Modular pneumatic circuit assembly
- Air compressor line fittings
- CNC machine tool air supply connections
- Industrial robot end-effector plumbing
- Packaging machine manifold systems
Installation guidelines:
Apply 2-3 wraps of PTFE tape on male threads. Tighten to 12–15 N·m torque.
Avoid overtightening to prevent thread deformation. For vertical installations,
use secondary locking nut (X-APLN series recommended).
Compatible Accessories:
- X-APTM10: Matching male threaded adapter
- X-APV10: Vibration-damping sleeve kit
- X-APF10: Flow rate booster insert
| Property | Property Value |
|---|---|
| sku | X-APCF4M10 |
