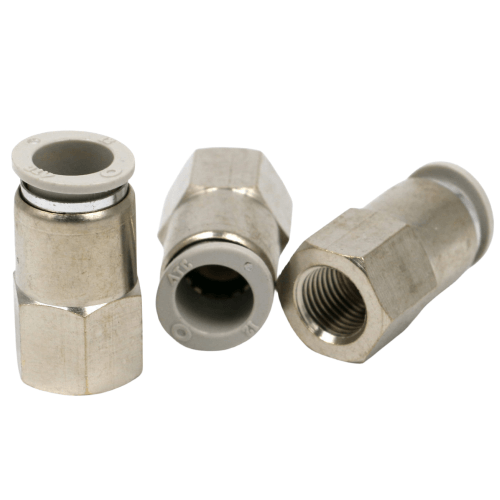

Airtac X-APCF Female Thread Straight Connector X-APCF602
$3.53
Regular price
$11.03
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCF602
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCF602 Straight Threaded Fitting (Female Thread) Technical Details
- Model: X-APCF602
- Type: Female-threaded straight connector (BSPP thread)
- Thread specification: G1/4 (ISO 1179-1 compliant)
- Material: Nickel-plated brass body
- Seal material: NBR (Nitrile) O-ring
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Surface treatment: Electrolytic polishing
- Torque limit: 10-12 N·m (88-106 in-lb)
- Weight: 28g ±1g
- Dimensions: Ø12mm (OD) × 30mm (L)
- Fluid compatibility: Air, inert gases, and non-corrosive media
- Reusable cycles: ≥500 connections
A precision-machined pneumatic connector featuring zero-leak design with dual-sealing structure (metal-to-metal seat + elastic seal). The hexagonal base allows tool-assisted installation in confined spaces. The 30° chamfered entry ensures smooth tube insertion with 4-6mm push-in depth.
Industrial Applications:
- Modular pneumatic circuit assembly lines
- CNC machine tool coolant distribution
- Semiconductor fab gas delivery systems
- Robotic gripper pneumatic networks
- Compressed air instrumentation panels
Installation protocol:
Apply 1.5-2 wraps of PTFE tape on male threads (for non-O-ring systems).
For optimal sealing, align port axis within ±3° during assembly.
Pressure test recommended after 24hrs of installation.
| Property | Property Value |
|---|---|
| sku | X-APCF602 |
