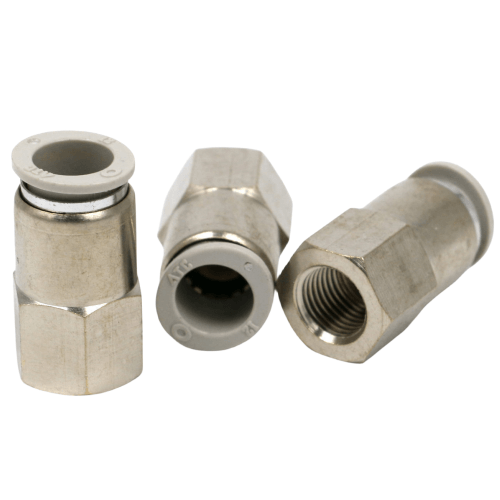

Airtac X-APCF Female Thread Straight Connector X-APCF604
$4.36
Regular price
$11.86
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCF604
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCF604 Female Thread Straight Fitting Technical Details
- Model: X-APCF604
- Type: Female thread straight connector (BSPP thread)
- Thread standard: PT1/4 (G1/4 compatible)
- Material: Stainless steel 303 (SUS303)
- Surface treatment: Electropolished
- Pressure rating: 0.1-1.0 MPa (14.5-145 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Flow coefficient (Cv): 0.35
- Seal material: NBR (Nitrile) with optional FKM (Fluorocarbon)
- Weight: 48g ±2g
- Dimensions: 30mm (L) × 12mm (OD) × 8mm (ID)
- Hex size: 14mm wrench flat
- Compliance: RoHS 2.0 compliant
Precision-machined pneumatic connector featuring dual-stage sealing (metal-to-metal primary seal + elastomer secondary seal). Anti-vibration design with 6-point torque verification during manufacturing. Internal bore maintains laminar flow with Ra 0.8μm surface finish.
Ideal Applications:
- High-cycle pneumatic cylinder manifolds
- Vacuum system interconnections
- Coolant line fittings in CNC machinery
- Semiconductor fab equipment gas lines
- Hydraulic test bench installations
Installation protocol:
Apply 2-3 wraps of PTFE tape clockwise on male threads. Tighten to 14-16 N·m torque.
For stainless-steel-to-stainless connections, use anti-seize compound (nickel-based recommended).
Avoid overtightening - maximum 1.5 rotations past finger-tight.
Pressure test required after installation. Not recommended for oxygen service without special cleaning.
| Property | Property Value |
|---|---|
| sku | X-APCF604 |
