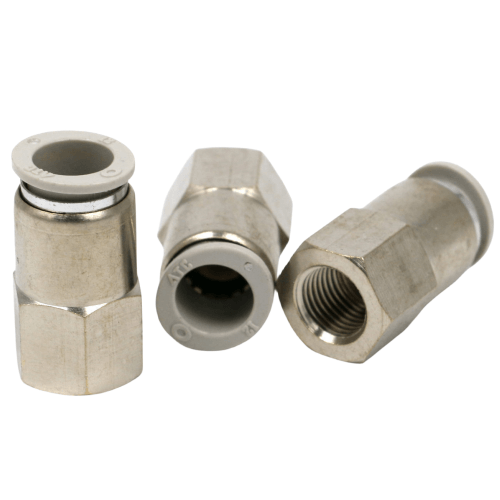

Airtac X-APCF Female Thread Straight Connector X-APCF6M12
$3.53
Regular price
$11.03
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCF6M12
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCF6M12 Internal Thread Straight Fitting Specifications
- Model: X-APCF6M12
- Type: Metric internal thread straight connector
- Thread specification: M12×1.5 internal threads (both ends)
- Material: Stainless steel (SUS303) with chrome plating
- Pressure rating: 0.05–1.5 MPa (7–217 psi)
- Temperature range: -20℃ to 80℃ (non-freezing conditions)
- Seal type: Precision ground metal-to-metal seal
- Surface roughness: Ra ≤0.8μm (sealing surfaces)
- Proof pressure: 2.25 MPa (326 psi) sustained for 3 minutes
- Weight: 38±2 grams
- Dimensions: 34mm(Length) × 18mm(Width) × 18mm(Height)
- Flow coefficient (Cv): 0.15
- Vibration resistance: 10–2000Hz, 20G acceleration
- Certification: RoHS compliant
High-precision pneumatic connector featuring triple chrome plating for corrosion resistance in humid environments. The ultra-smooth internal bore (Ø4mm) minimizes pressure drop, optimized for high-cycle automation systems. Compatible with ISO 16030 standard push-to-connect fittings.
Typical Applications:
- Robotic arm pneumatic tool changers
- Semiconductor wafer handling equipment
- High-speed packaging machine air circuits
- CNC machine tool pneumatic clutches
- Food processing vacuum gripper systems
Installation protocol:
Apply PTFE tape or liquid sealant on external threads only.
Tighten to 14–16 N·m torque using crowfoot wrench.
Avoid overtightening – maximum allowable rotation after seal contact is 1.5 turns.
