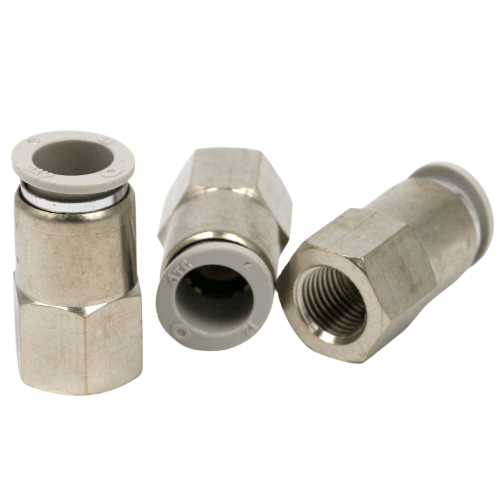

Airtac X-APCF Female Thread Straight Connector X-APCF6M6
$3.07
Regular price
$10.57
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCF6M6
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCF6M6 Female Thread Straight Fitting Specifications
- Model: X-APCF6M6
- Type: Female threaded straight connector (BSPP)
- Thread standard: Metric fine thread (M6×1.0)
- Material: Brass (CuZn39Pb3) with nickel plating
- Seal material: NBR O-ring
- Max working pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Burst pressure: 3.0 MPa
- Temperature range: -20℃ to 80℃
- Surface hardness: ≥HV200
- Weight: 8.2±0.5g
- Dimensions: 25mm(L) × 8mm(Dia) × 8mm(Port width)
- Torque specification: 1.2-1.5 N·m
- Fluid compatibility: Air, inert gases, non-flammable gases
Precision-machined pneumatic connector with triple-seal technology (thread seal, metal-to-metal seal, and O-ring backup). Features anti-vibration grooves and corrosion-resistant nickel plating. Meets ISO 6149-3 leakage standards with ≤0.1 mL/min leakage at 0.5 MPa.
Typical Applications:
- Modular pneumatic circuit assembly
- Sensor/actuator port extensions
- Vacuum system branch connections
- Medical device gas line interfaces
- Robotic end-effector pneumatic routing
Installation note:
Apply 1.5-2 wraps of PTFE tape on male threads (40% overlap).
Avoid overtightening - use torque wrench for critical applications.
Compatible with tube OD: 4mm (1/8") to 6.35mm (1/4").
| Property | Property Value |
|---|---|
| sku | X-APCF6M6 |
