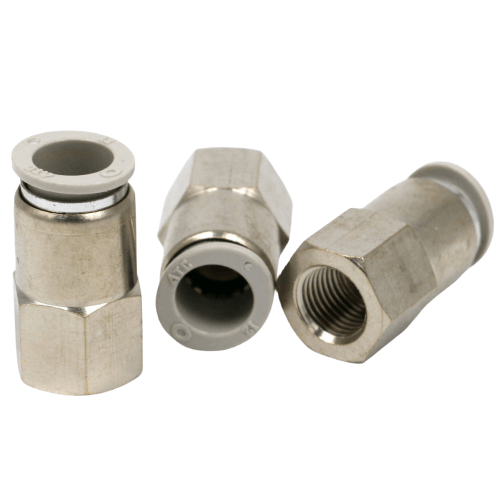

Airtac X-APCF Female Thread Straight Connector X-APCF801
$3.27
Regular price
$10.77
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-APCF801
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-APCF801 Internal Thread Straight Fitting Technical Details
- Model: X-APCF801
- Type: Internal thread straight connector (BSPP thread)
- Material: Brass with nickel plating (stainless steel variant available as X-APCF801-SS)
- Thread specification: G1/8 (ISO 228-1 compliant)
- Pressure rating: 0.2-1.5 MPa (working), 3.0 MPa burst pressure
- Temperature range: -20℃ to 120℃ (with NBR seals)
- Fluid compatibility: Air, water, oil (mineral-based)
- Surface roughness: Ra ≤1.6μm (sealing surfaces)
- Tightening torque: 12-15 N·m (recommended)
- Weight: 25g ±2g
- Dimensions: 35mm(L) × 16mm(Ø) × 16mm(threaded portion length)
- Seal material: Standard NBR (optional FKM available)
- Vibration resistance: 10-2000Hz, 10G acceleration
Precision-machined straight connector featuring leak-proof double-seal design with secondary O-ring protection. The hexagonal body allows 360° orientation adjustment post-installation. Electroplated interior prevents particle shedding in cleanroom environments.
Primary Applications:
- Modular pneumatic circuit assembly in robotics
- Coolant line connections for CNC machinery
- Vacuum system interconnections
- Hydraulic test bench configurations
- Compressed air distribution in automotive plants
Installation protocol:
Apply thread sealant only on male threads (not required for tapered threads).
Use backup wrench on the hex flats during tightening to prevent tube distortion.
Maximum 1.5 rotations after hand-tight engagement.
Compatibility Alert:
Not suitable for oxidizing media or phosphate ester fluids.
Replace O-rings immediately if exposed to temperatures above 120℃ for >30 minutes.
| Property | Property Value |
|---|---|
| sku | X-APCF801 |
